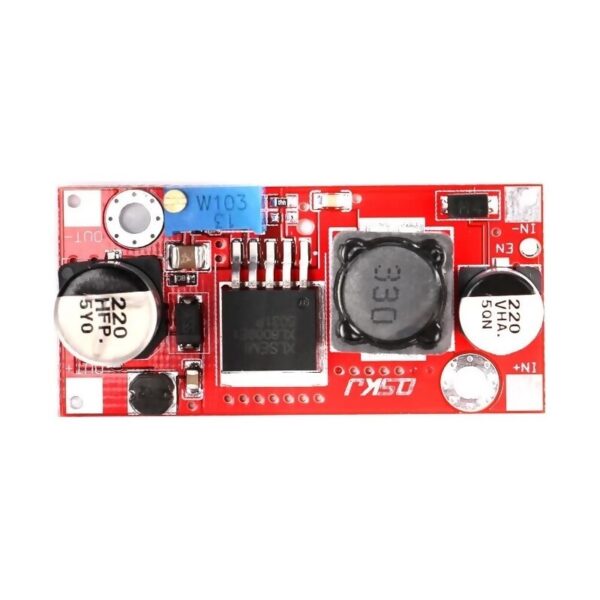

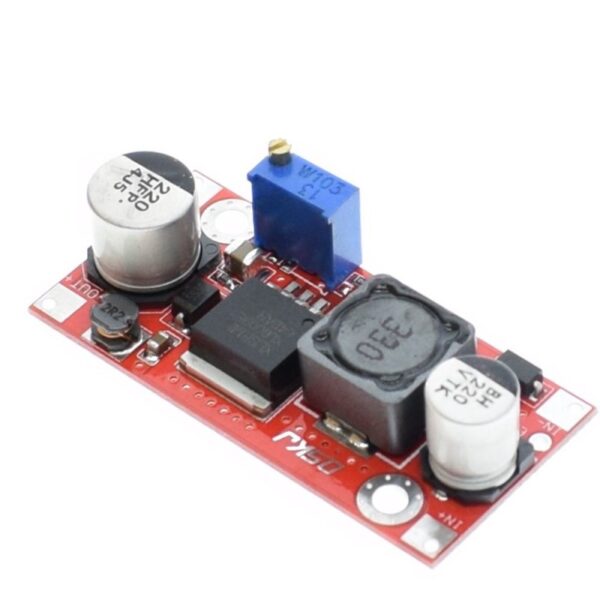

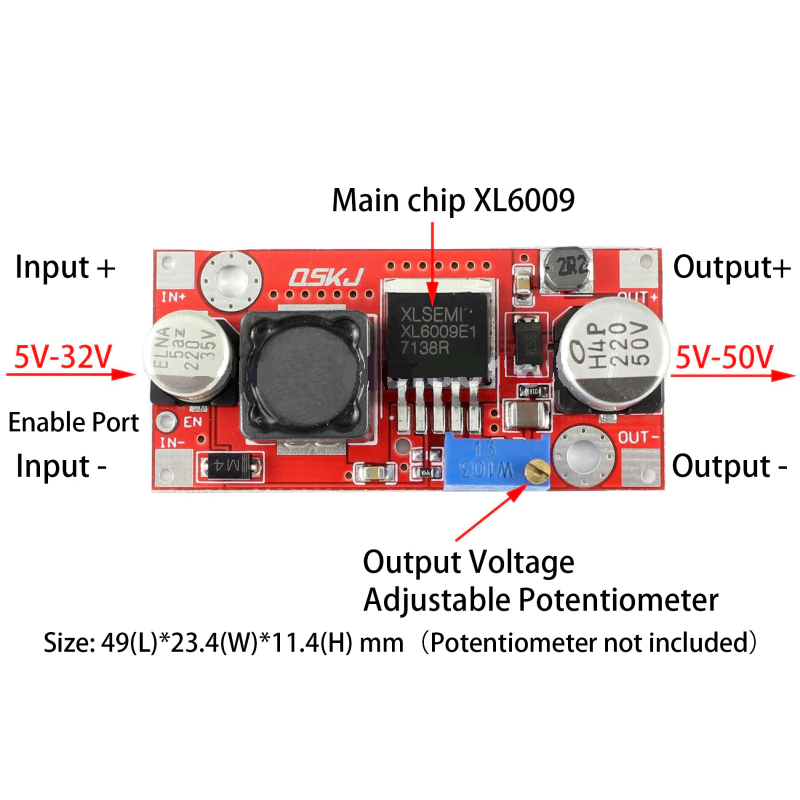

XL6009 Low Ripple Step-Up DC-DC Converter Module

الوصف

Description and Specifications

The source works at frequencies of up to 400KHz, has an RC filter circuit and also has an activation port for full control over the circuits in your projects.

• Input voltage: 5-32 V
• Output voltage 1.2-35 V
• Maximum input current: 4 A
• Maximum output current: 1.5 A
• Maximum output power: 20 W without cooling, 25 W with cooling
• Rated 30mV measured at 12 V input and 24 V output, 0.5 A with 20 MHz limited oscilloscope band
• Working temperatures from -40 oC to + 85 oC
• Maximum load temperature: 45 oC
• Working Frequency: 400 KHz
• Current consumption without load: 5 mA (from 5 V to 12 V)
• Dynamic Response: 5% 200uS
• Activation port: HIGH (1.4 V) / LOW (0-0.8 V), preset on HIGH
• Without short-circuit protection and polarization reversal – Attention to connections
• Accuracy in maintaining the output voltage: ± 0.5%
• Dimensions: 49 x 23 mm
