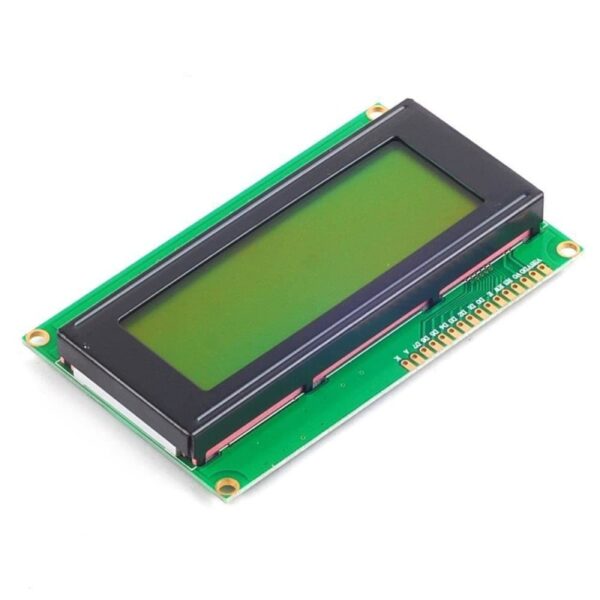

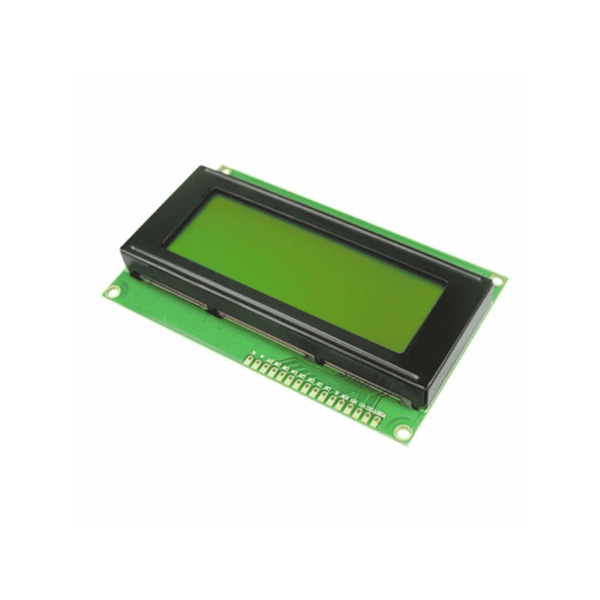

Green 20×4 LCD – 5V Backlight
8,000 د.ا
This LCD 2004 with yellow – green back light can display 20 characters on 4 lines. This is compatible with the KS0066 controller or equivalent.
- الوصف
الوصف
Description
This LCD 2004 with yellow – green backlight can display 20 characters on 4 lines. It is ideal for electronic projects that need larger space to display information.
It can easily be used in low light conditions because it has light and LCD backlight. This LCD 2004 is compatible with the KS0066 controller or equivalent.
Specifications
- Voltage: 5 V
- Current: 2 mA
- Blacklight Supply Voltage: 4.2 V
- Blacklight Current: 250 mA
- Dimensions: 98.0 mm × 60.0 mm x 14.0 mm
Connections
- Pine 1: ss
- Pine 2: VDD
- Pine 3: Vo-LCD contrast (between VSS and VDD V)
- Pine 4: RS
- Pine 5: R/W
- Pine 6: E-enable
- Pine 7-14: DB0-DB7
- Pin 15: V + blacklight
- Pin 16: V – blacklight
