Touch Switch Capacitive Sensor Module 5V-24V

السعر الأصلي هو: 5,000 د.ا.السعر الحالي هو: 4,000 د.ا.

  1. Input voltage: 5v-24v
  2. Standby current: 10mA
  3. Single touch modes
Availability: 20 متوفر في المخزون التصنيفات: , , ,

الوصف

Description

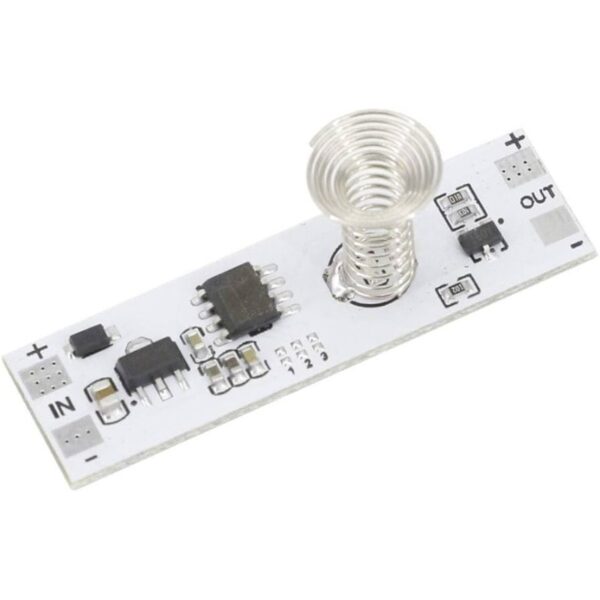

This sensor module can be used to convert any metallic surface touch sensitivity. You can mount this module on any metal surface with its spring touching the surface of the metal object, once installed this module will convert the metal object touch-sensitive and touch to any part of the surface that can control switching of the LED strip light.

Mode Description:

Touch_Sensor_S00 (general switch): S00 mode, fast touch switch lamp on/off state, no dimming function.

Note: Product images may vary from the actual product in terms of design.

Specifications

  • Input Voltage (V): 5 to 24
  • Load Current: 3A
  • Standby Current: 10mA
  • Standby Power Consumption: 0.1W
  • Operating Temperature Range (oC): -20 to 60
  • Type: Touch_S (L40W10)

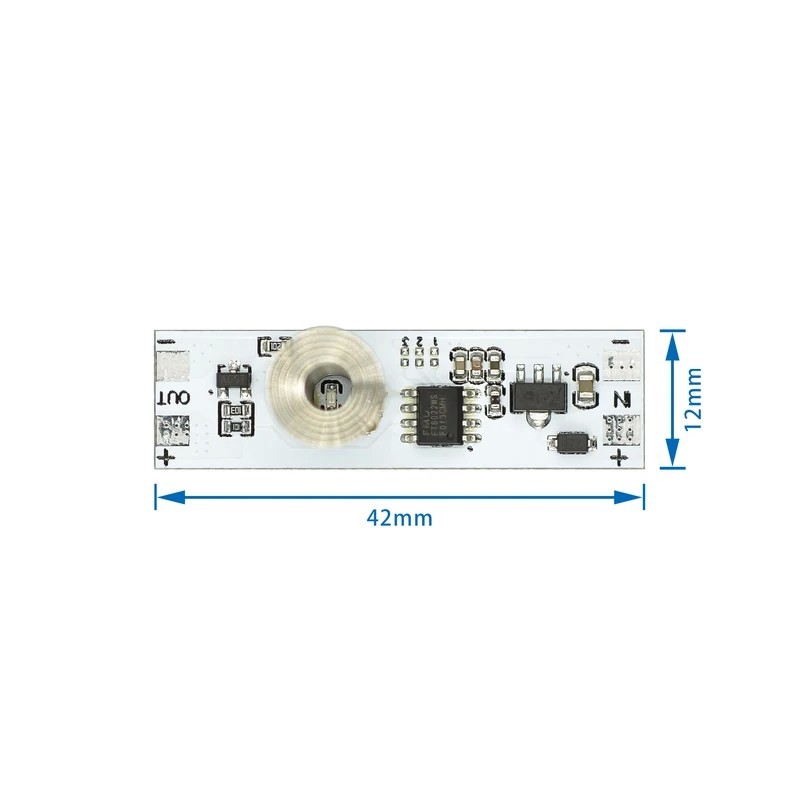

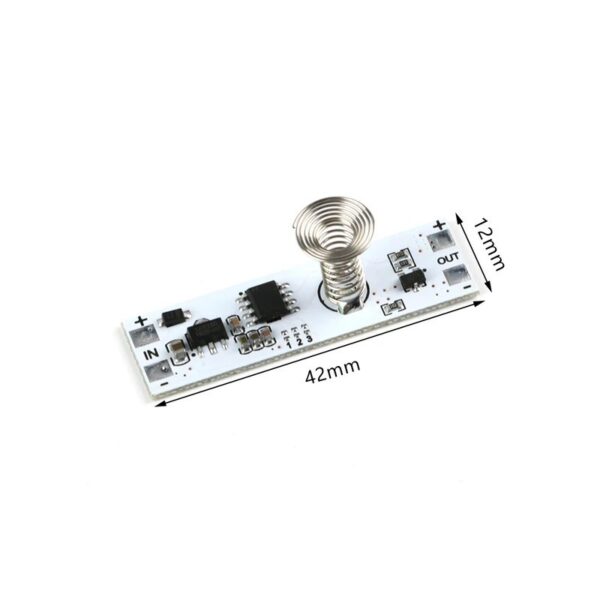

  • Length (mm): 44
  • Width (mm): 12
  • Height (mm): 12
  • Weight (gm): 8
