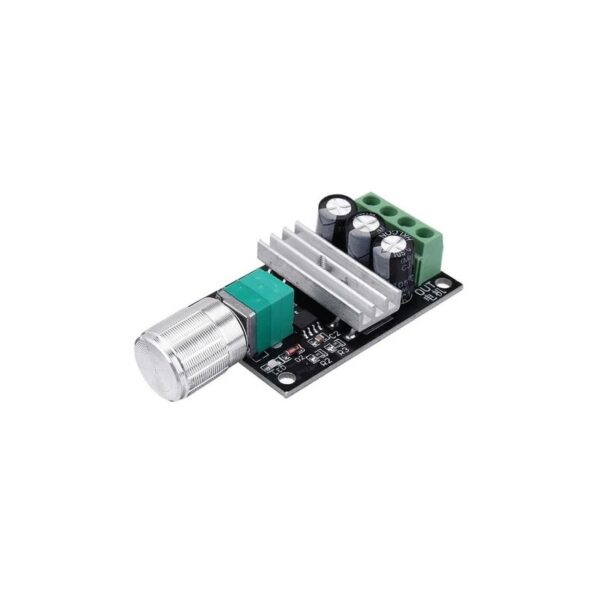

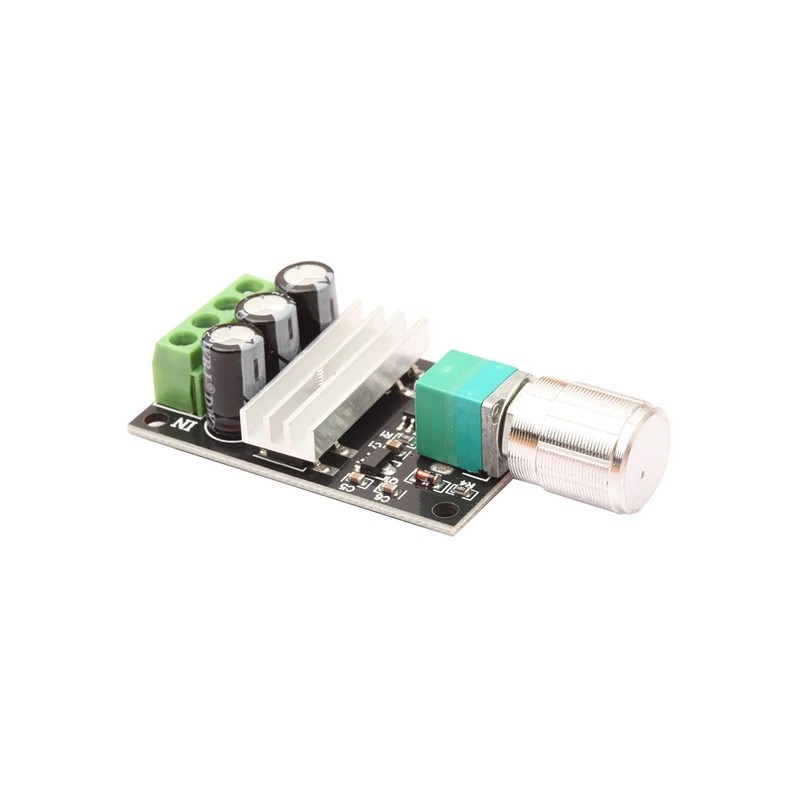

3A PWM Motor Speed Controller 6V-28V
السعر الأصلي هو: 5,000 د.ا.3,000 د.االسعر الحالي هو: 3,000 د.ا.
3A PWM Motor Speed Controller 6V-28V
- الوصف
الوصف
Technical specifications
- Supply voltage: 6 V – 28 V DC
- Compatible with DC motors
- Maximum output power: 80 W
- Maximum Output Current: 3 A
- Adjustable fill factor: 0% – 100%
- LED with variable intensity according to the filling factor
- Includes mini passive radiator
Instructions for use

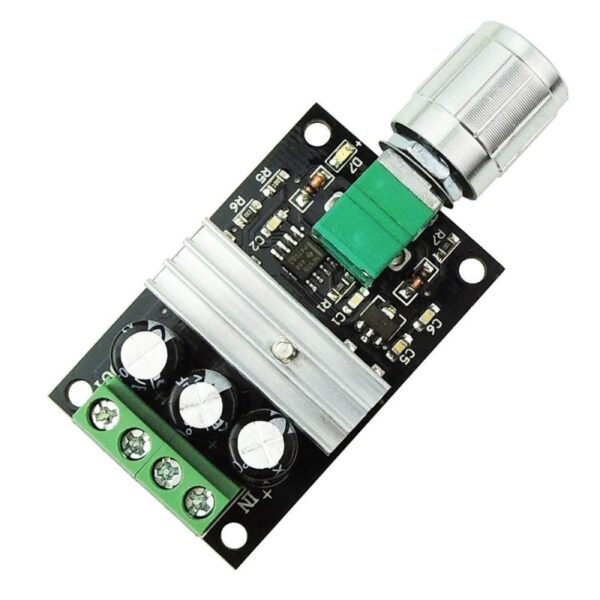

The module is powered by the screw terminals marked on the PCB board with “Power -” and “Power +”.
CAREFUL!!! Be sure to observe the polarity to avoid damaging the product.
The output terminals are marked with “Motor +” and “Motor -“. Adjustment of the filling factor is achieved via the potentiometer.
