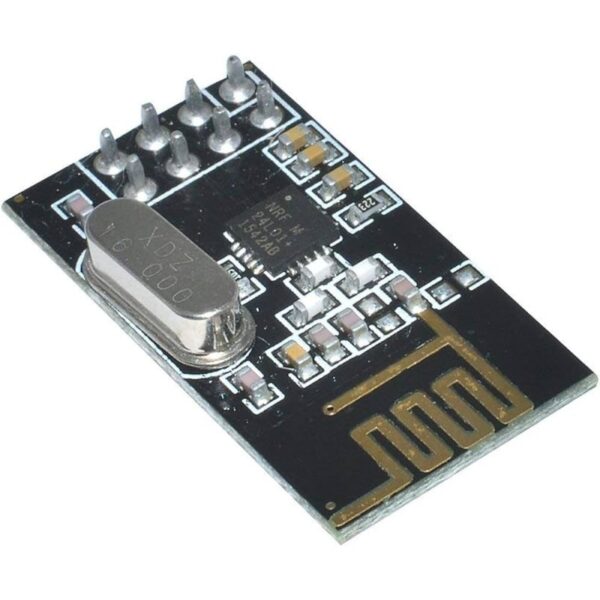

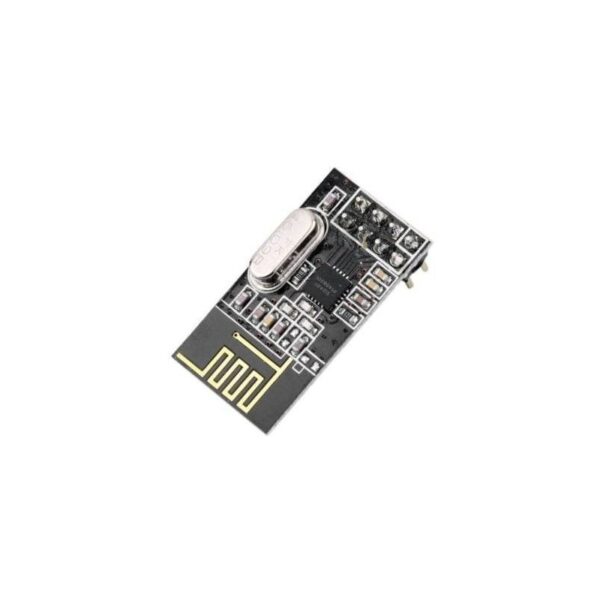

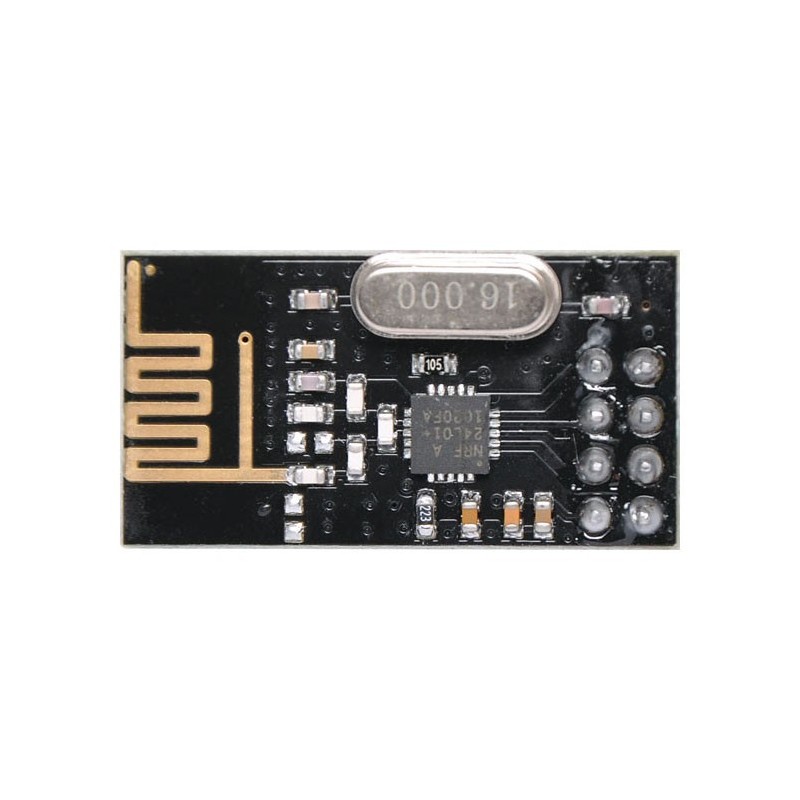

nRF24L01+ 2.4GHz Wireless Transceiver Module
السعر الأصلي هو: 4,000 د.ا.3,000 د.االسعر الحالي هو: 3,000 د.ا.
This module uses the nRF24L01 integrated circuit, which is a low cost highly integrated RF transceiver, which operates in the standard ISM brand and is capable of data rates up to 2 Mbps.
- الوصف
الوصف
Description
The module has 5 V tolerant inputs, making it easy to interface the module with the most popular microcontroller boards, like Arduino. This module is ideal for wireless peripherals, wireless remote controls, home and commercial automation, active RFID, VOIP headsets and wireless toys.
Features
- Worldwide 2.4 GHz ISM band operation
- Up to 2Mbps on air data rate
- SPI interface
- Ultra low power operation
- 11.3mA TX at 0dBm output power
- 12.3mA RX at 2 Mbps air data rate
- 900nA in power down
- 22μA in standby-I
- On chip voltage regulator
- 1.9 to 3.6 V supply range
- Automatic packet handling
- Auto packet transaction handling
- 5V tolerant inputs
