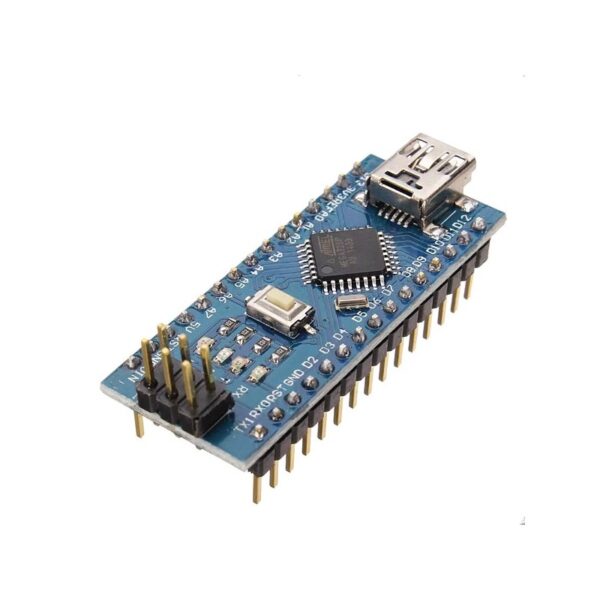

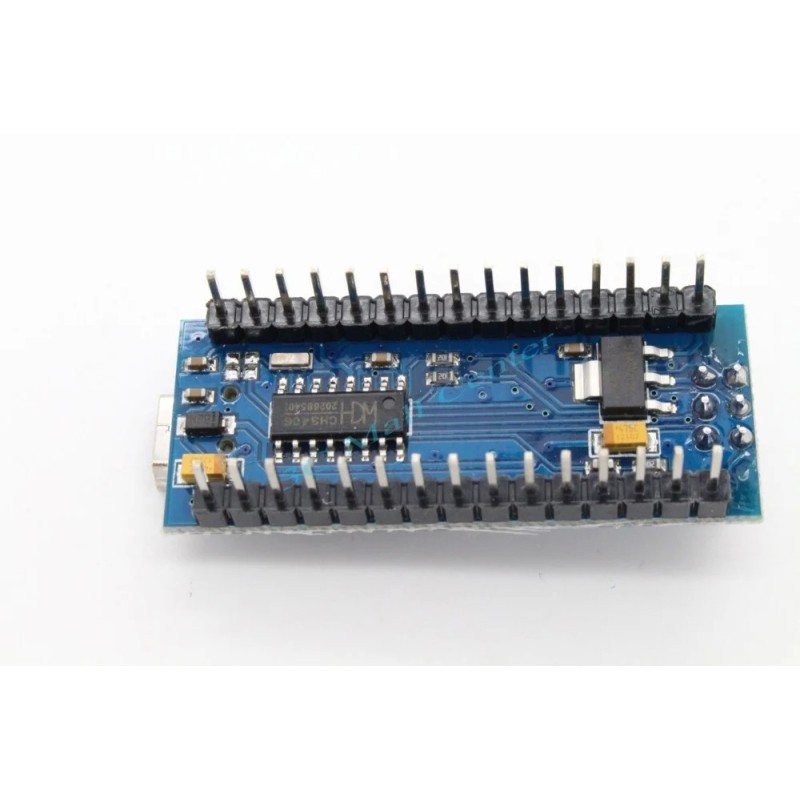

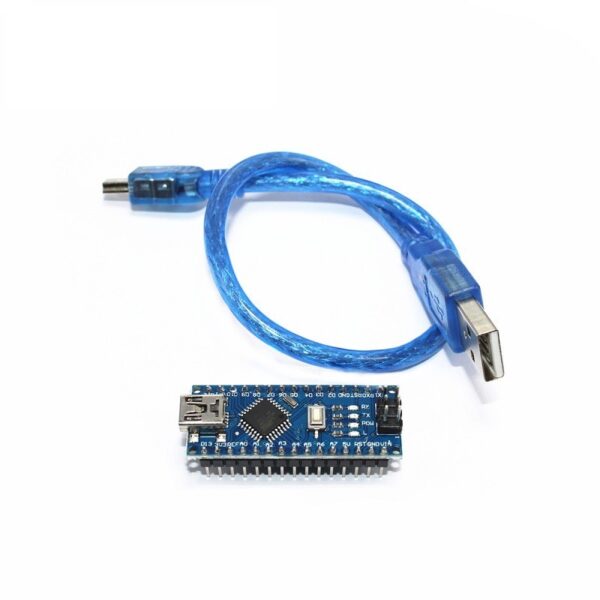

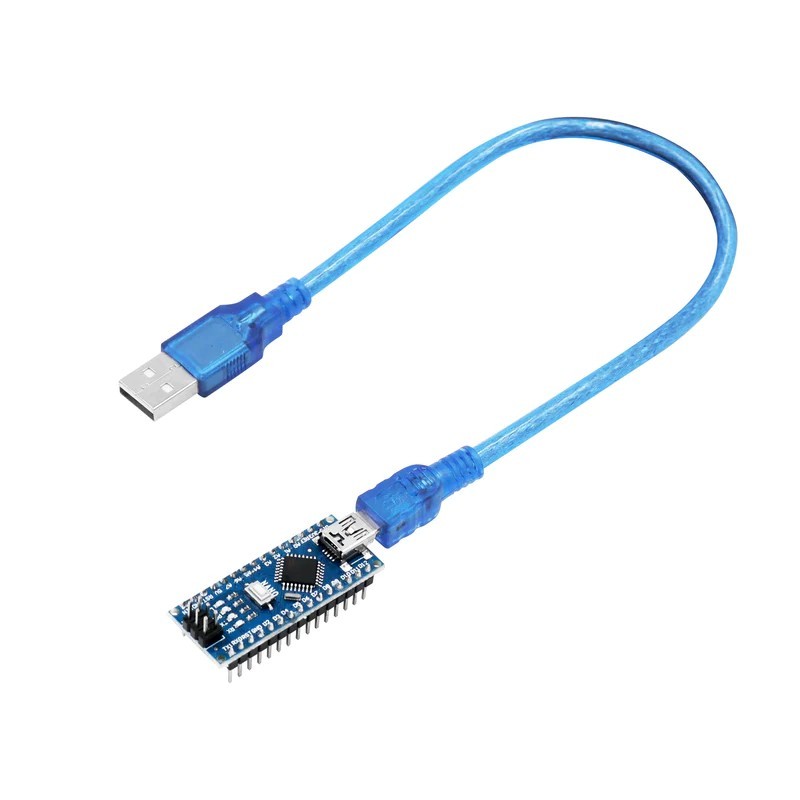

Arduino Nano R3 ATmega328p-CH340 + Cable

الوصف

• Technical specifications

  • Power supply voltage: 5 V;
  • Supply voltage supported by limiter: 7 V – 12 V
  • Pines I / O: 14
  • PWM pins: 6 (out of 14 I / O)
  • ADC pins: 8 (out of 14 I / O)
  • Flash memory: 32 kB / 16 kB (2 kB used by bootloader)
  • I / O pin current: 40 mA / pin
  • TWI, SPI and UART communication
  • Operating frequency: 16 MHz
  • Dimensions: 45 mm x 18 mm

  The development board is equipped with the same powerful micro-controller (ATmega328p) on the Arduino Uno. Its advantage is represented by its very small size, which can be integrated into various projects where the space of the components is limited. Device programming is done via a USB cable, without the need for a special programmer because a bootloader is installed.

  It is ideal for small projects and has the advantage of being programmable via USB.

  Be sure to install the CH340 CIP driver (attached at the bottom of the page) before use.
