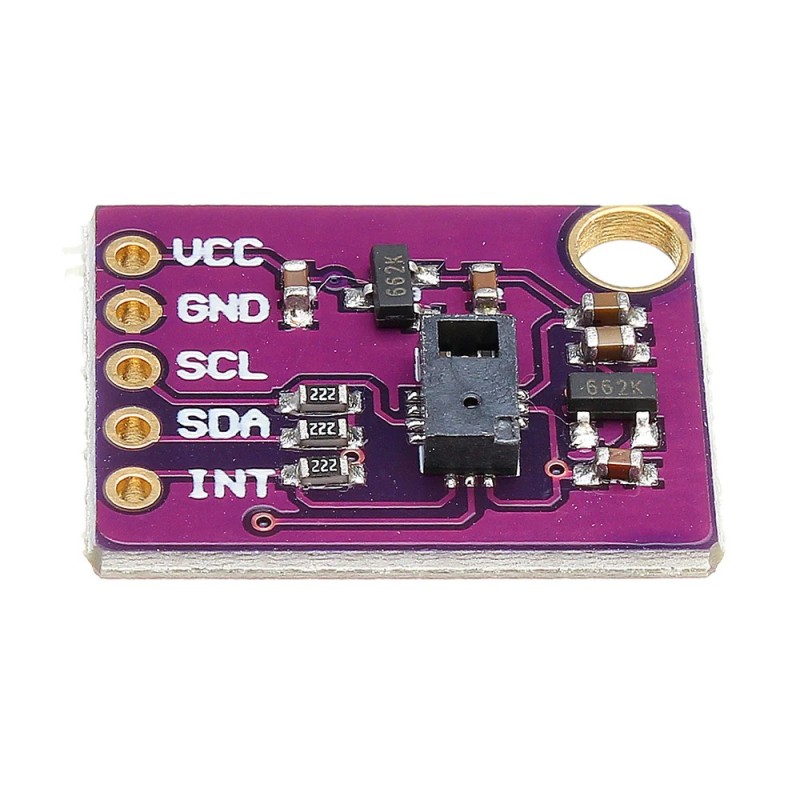

PAJ7620 Gesture Recognition Sensor
السعر الأصلي هو: 15,000 د.ا.12,000 د.االسعر الحالي هو: 12,000 د.ا.
The Gesture Recognition Sensor Module is a PAJ7620U2 that integrates gesture recognition with a universal I2C interface into a single chip. It recognizes 9 gestures, including moving up, moving down, moving to the left, moving to the right, moving forward, moving backwards, clockwise, circumference – counterclockwise, down, down, left to Right, left to right.
- الوصف
الوصف
Product Description
Gesture information can be accessed via the I2C bus. The core chip of the CJMCU-7620 gesture recognition sensor module is PAJ7260u2, which is a body infrared identification IC that supports communication with the I2C protocol.
Specifications
• Typical supply voltage is 3.3 V -5 V
• 9 gesture recognition (Up / Down / Left / Right / Push / Pull / CW / CCW / Wave)
• Gesture speed is 60o/s to 600o/s in Normal Mode and 60o/s to 1200o/s in Gaming Mode
• Ambient light immunity: < 100k Lux
• Built-in proximity detection
• Flexible power saving scheme
• I2C interface up to 400 kb/s
• Ambient light noise cancellation
