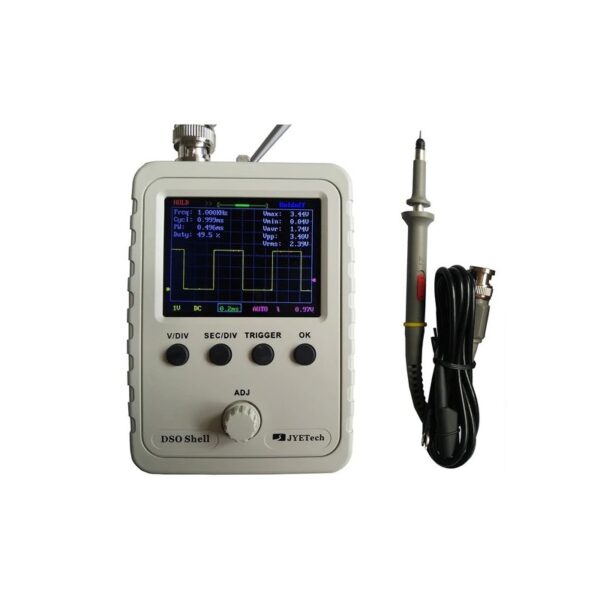

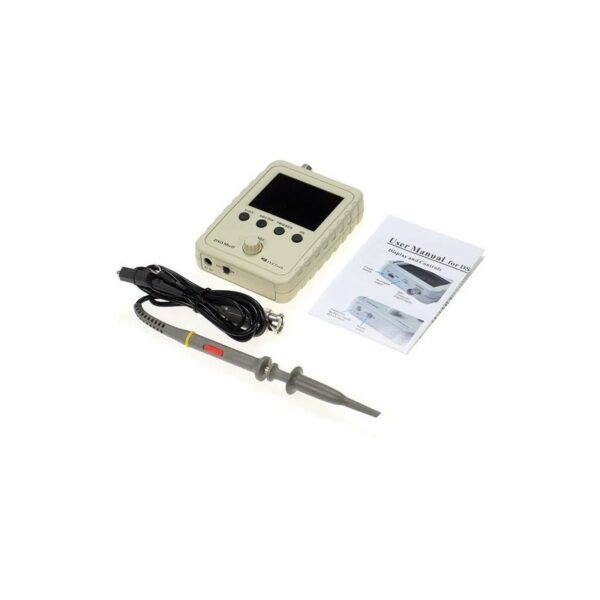

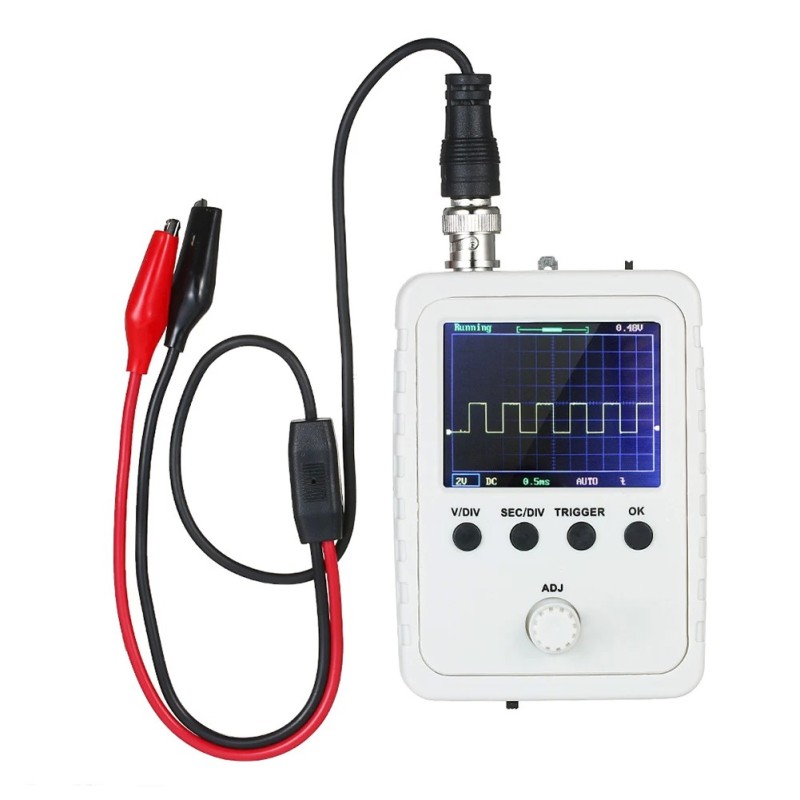

DSO150 Mini Oscilloscope 150KHz – Assembled
السعر الأصلي هو: 50,000 د.ا.40,000 د.االسعر الحالي هو: 40,000 د.ا.
DSO150 Mini Oscilloscope 150KHz – Assembled
- الوصف
الوصف
Specifications
- Maximum Real-time Sampling Rate: 1MSa/s
- Analog Bandwidth: 0-200KHz
- Sensitivity Range: 5mV/div-20mV/idv
- Maximum Input Voltage: 50Vpk (1X probe)
- Input Impedance: 1M ohms/20pF
- Accuracy: 12 Bits
- Record Length: 1024 points

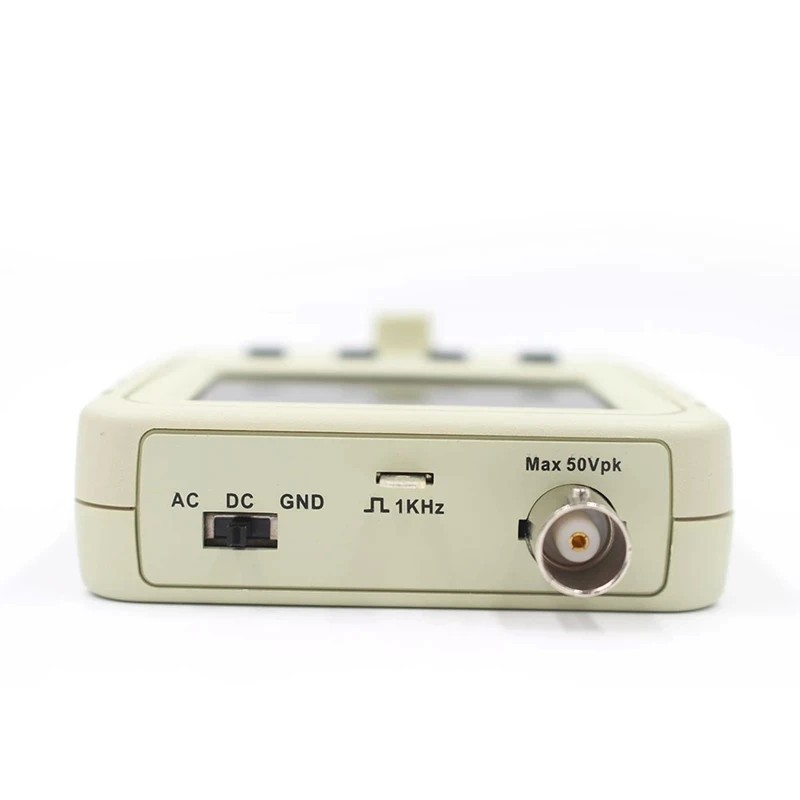

- Coupling Modes: DC / AC / GND
- Time Base Range: 500s/Div-10us / Div
- Trigger Modes: Auto, Normal, and Single
- Trigger Position: Center of Buffer
- Supply Voltage: DC 9V(8-10V)
- Current Consumption: ~120mA @ 9V

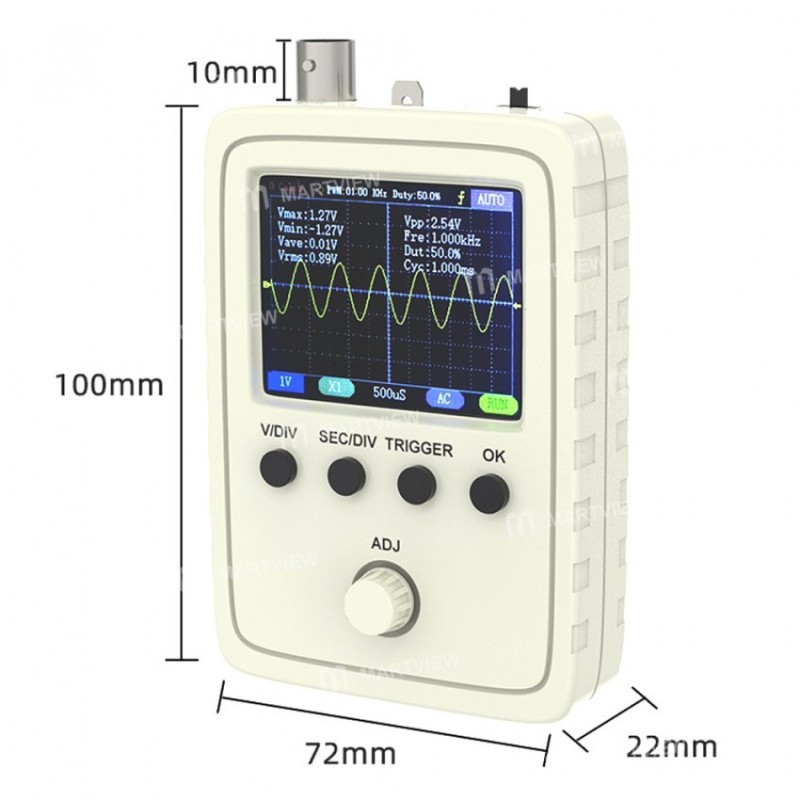

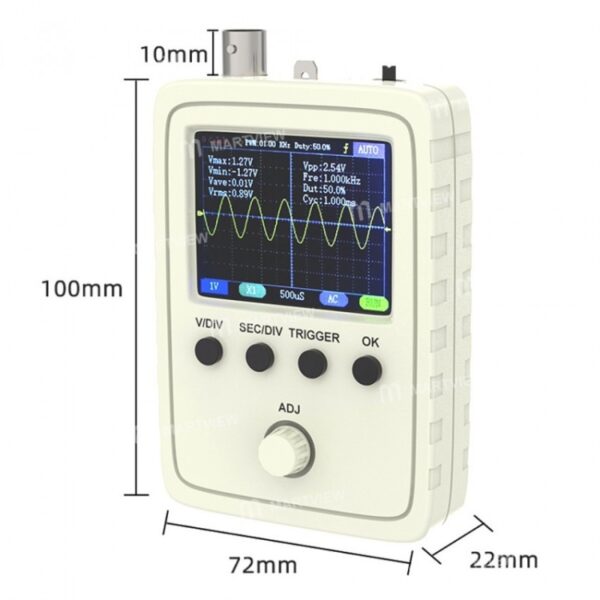

- Main Board Size: 94 * 65mm / 3.7 * 2.56in
- Analog Board Size: 65 * 47mm / 2.56 * 1.85in
- Screen Size: 52 * 40mm / 2 * 1.57in
