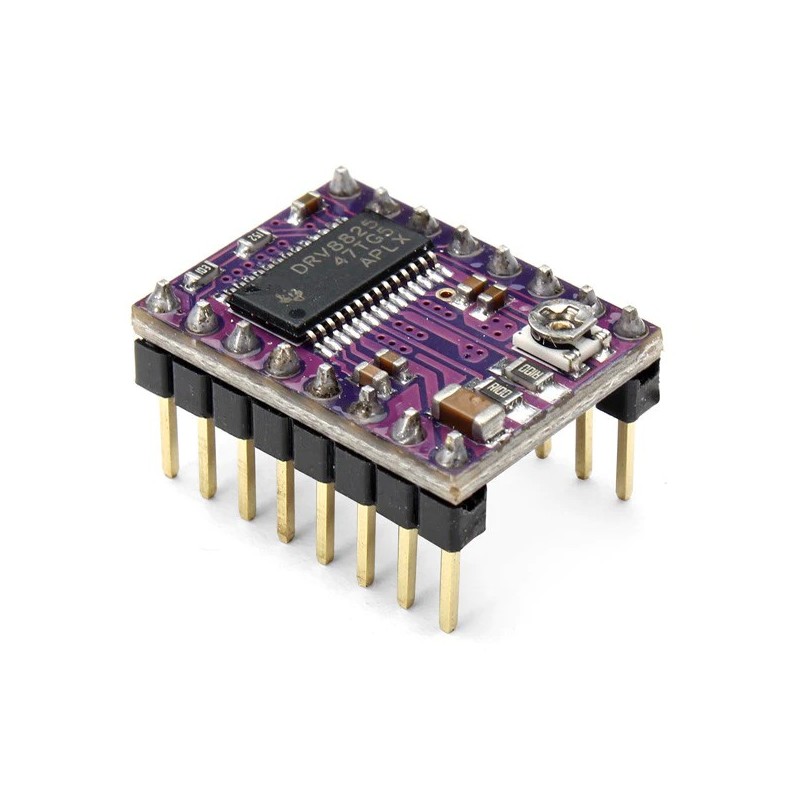

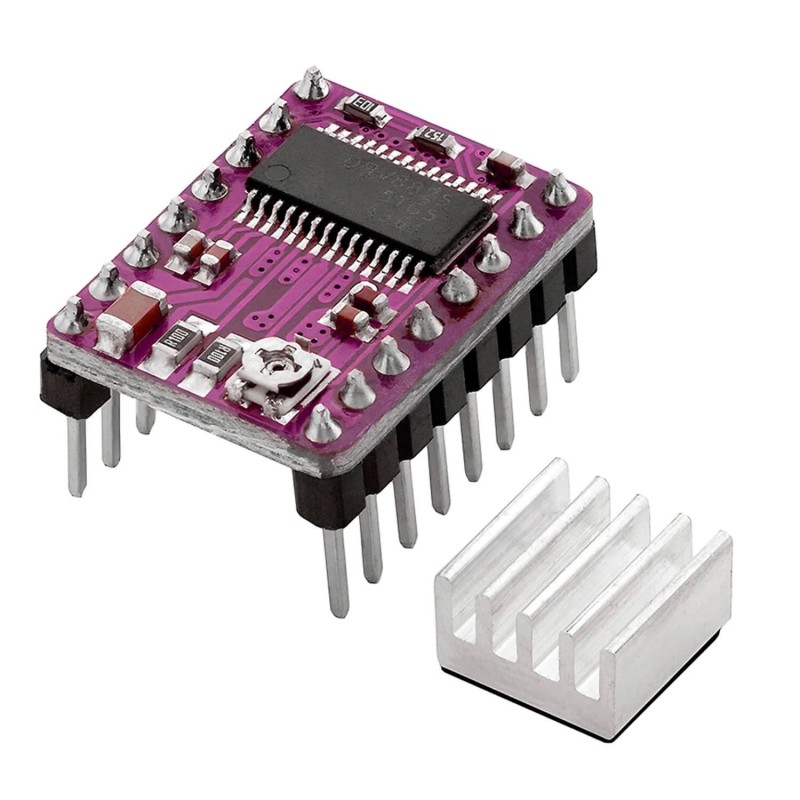

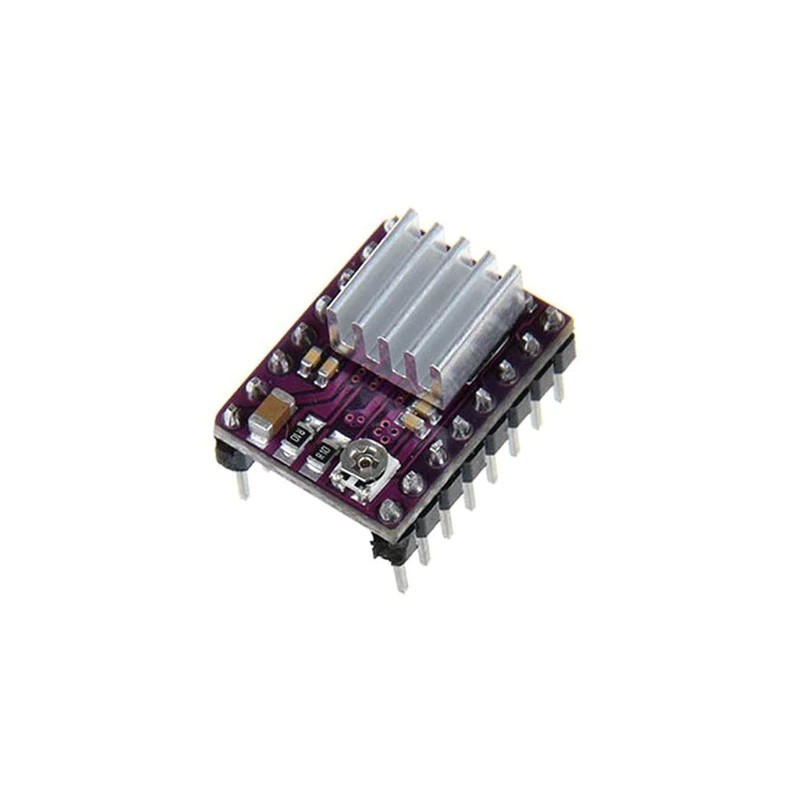

DRV8825 STEPPER MOTOR DRIVER MODULE
السعر الأصلي هو: 6,000 د.ا.3,750 د.االسعر الحالي هو: 3,750 د.ا.
This is a break out board for DRV8825 microstepping bipolar stepper motor drive. It can drive a bipolar stepper motor with an output current of up to up to 2.5 A per coil. It is suitable for driving motors at wide range of voltages from 8.2 V to 45 V.
- الوصف
الوصف
Overview
This is a break out board for DRV8825 microstepping bipolar stepper motor driver. It can drive a bipolar stepper motor with an output current of up to 2.5 A per coil.
It is suitable for driving a stepper motor from a power supply of 8.2 V to 45 V.
Features
- Up to 32 segments
- Six step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step
- Adjustable output current via potentiometer
- Automatic current decay mode detection
- Over temperature shutdown circuit
- Under-voltage lockout
- Over current shutdown
Specifications
- 4-layer, 2 oz copper PCB for improved heat dissipation
- Output Current: 2.5 A
- PCB Size: 15 mm x 20 mm
