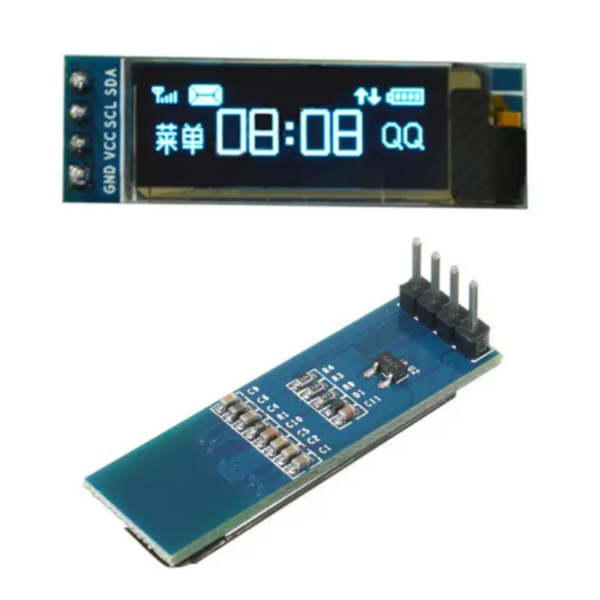

0.91 Inch OLED Module 0.91″
السعر الأصلي هو: 5,000 د.ا.3,500 د.االسعر الحالي هو: 3,500 د.ا.
This 0.91″ OLED Module (128×32 px) is a display module that can be controlled by Arduino or Raspberry Pi. Because of it’s size, it can be embedded in any hand-held devices.
- الوصف
الوصف
Description
This 0.91” OLED Module (128×32 px) is a display module that can be controlled by Arduino or Raspberry Pi. Because of its size, it can be embedded in any hand-held devices.
Specifications
• LCD Size: 0.91 inch
• Matrix Size: 128 x 32 (white, blue)
• Interface: IIC
• Driver: SSD1306
• Temperature: – 40oC to +70oC
• Voltage: 3.3 V

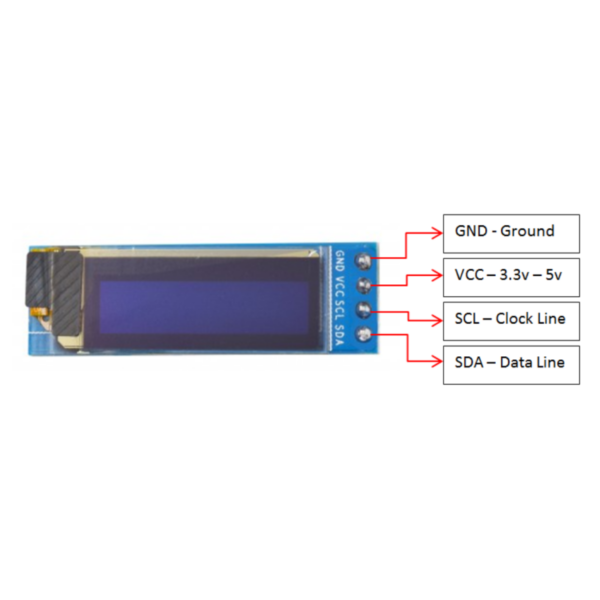

Pin Definitions
• GND Ground
• VCC power supply (3.3 V to 5 V)
• SDA IIC data
• SCL IIC clock
