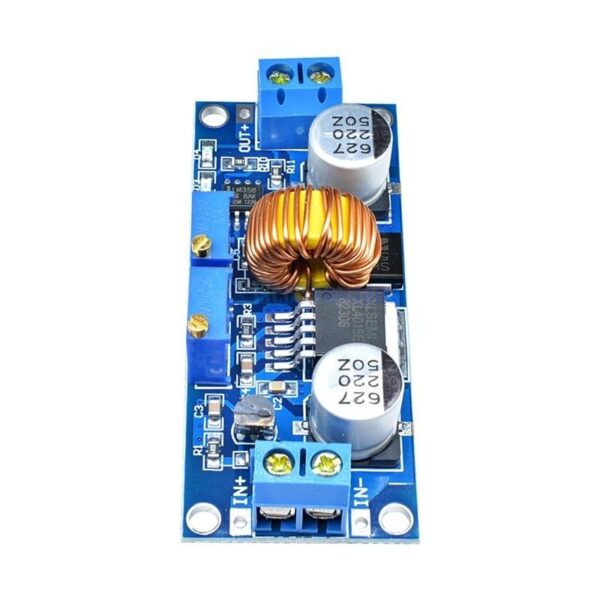

XL4015 Adjustable Current and Adjustable Voltage DC-DC Step Down Power Supply Module (5 A)
السعر الأصلي هو: 6,000 د.ا.3,500 د.االسعر الحالي هو: 3,500 د.ا.
XL4015 Adjustable Current and Adjustable Voltage DC-DC Step Down Power Supply Module (5 A)
NO INPUT REVERSE CONNECTION PROTECTION!
- الوصف
الوصف
Specifications
- Voltage input: 4 – 38 V
- Voltage output: 1.25 – 36 V
- Maximum current: 5 A with additional cooling
- Output power: 2.5 A, 30 W without heatsink, over 3 A, 35 W with heatsink
- Maximum output power: 75 W
- Working temperature: -40 ~ +85 oC
- Maximum efficiency: 96%
- Shot circuit protection (limited current 8 A), over temperature protection
- Low ripple
- Dimensions: 61.7 x 26.2 x 15 mm
- Weight: 25 g
This power supply can be used to charge lithium battery, because it doesn’t have constant current.
