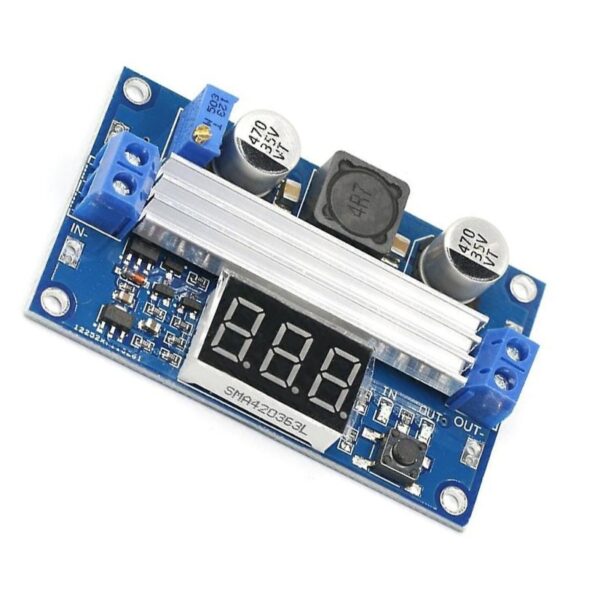

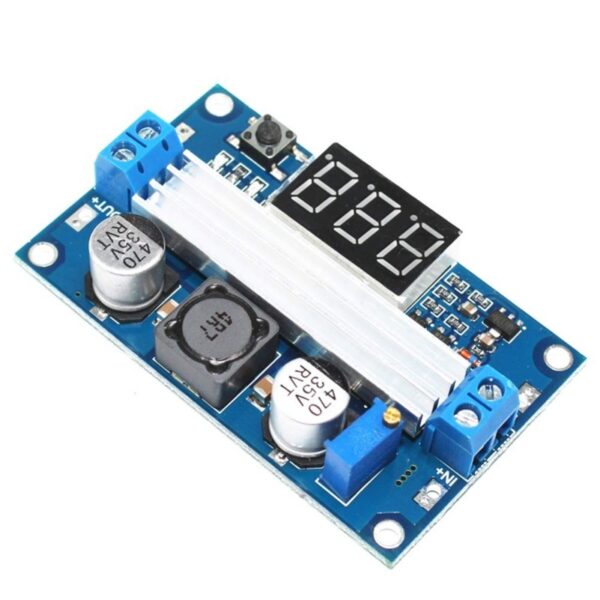

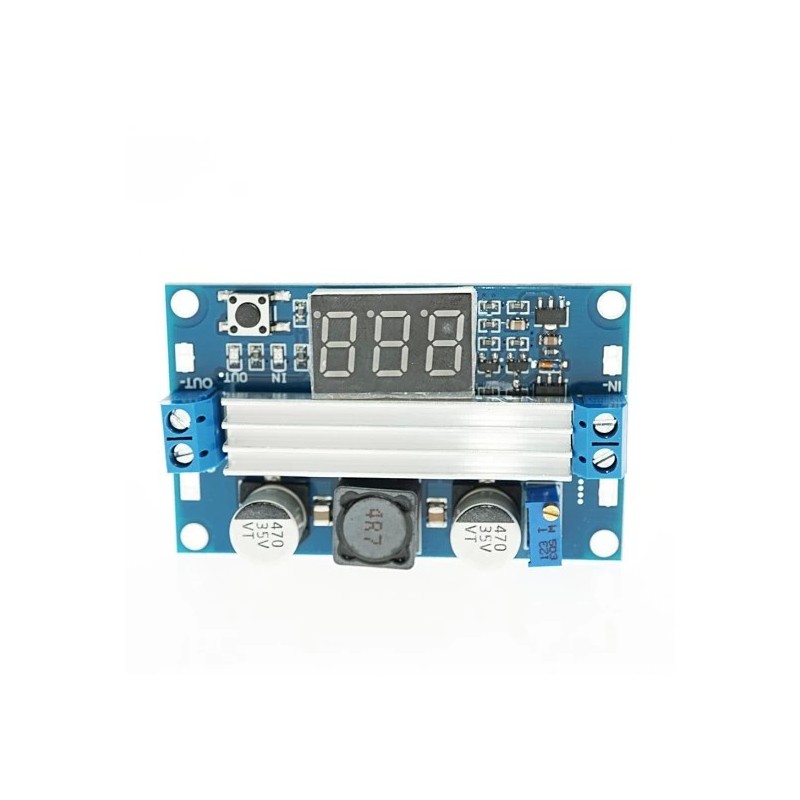

LTC1871 Adjustable DC-DC Step-up Voltage Converter With Display
السعر الأصلي هو: 12,000 د.ا.9,000 د.االسعر الحالي هو: 9,000 د.ا.
DC-DC boost voltage source (voltage boosters), with a wide range of input voltages (3.5 V – 35 V) and output voltages from 4 V to 35 V. It also includes a voltmeter with display to easily monitor the output or input voltage.
- الوصف
الوصف
Description and specifications
With this source, you can get output voltages from 4 V to 35 V. It supports input voltages between 3.5 V and 35 V and is very easy to use thanks to the included display, with which you can view the output voltage or the input voltage. The output voltage is adjusted using a potentiometer.
- Input voltages: 3.5 V – 35 V
- Adjustable output voltages (4 V – 35 V)
- Maximum output current: 4 A (depending on input and output voltages. Do not exceed the maximum current!)
- Display range: from 4 V to 45 V
- High efficiency
- Dimensions: 67 x 42 mm
Do not set the output voltage above 35 V!
You can use the source in various applications to power various devices.
