7824 24V Voltage Regulator TO-220
السعر الأصلي هو: 0,750 د.ا.0,400 د.االسعر الحالي هو: 0,400 د.ا.

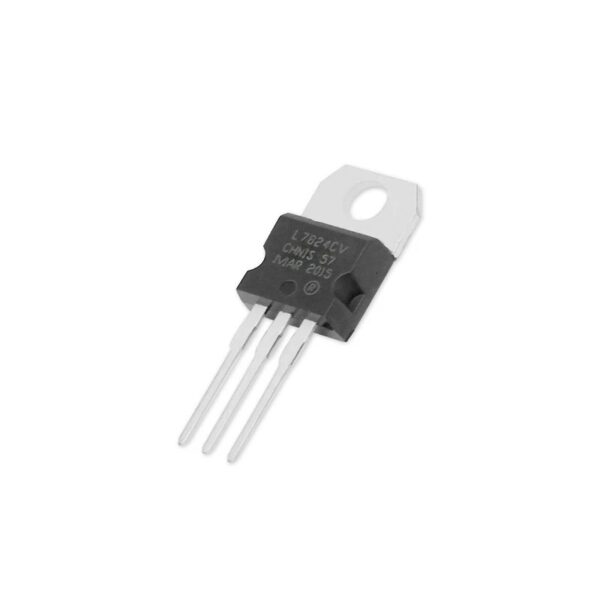

This L7824 24 V Voltage Regulator TO-220 can provide up to 1 A of output current at a fixed voltage of 24 V. This chip is a nonLDO integrated circuit and excess voltage is removed by heat dissipation.
- الوصف
الوصف
Overview
This L7824 24 V Voltage Regulator TO-220 can provide up to 1 A of output current at a fixed voltage of 24 V. This chip is a nonLDO integrated circuit and excess voltage is removed by heat dissipation.
Given that the product dissipating much heat, it is recommended to use in applications that do not have a high current consumption. It is also necessary to mount filtering capacitors before and after the regulator according to the attached datasheets.
Specifications
- Voltage: 24 V
- Maximum Output Current: 1 A
- Minimum Input Voltage: 26 V
- Maximum Peak Current: 2.2 A
- Leakage Current: 5 mA
- Output Resistance: 18 mΩ
