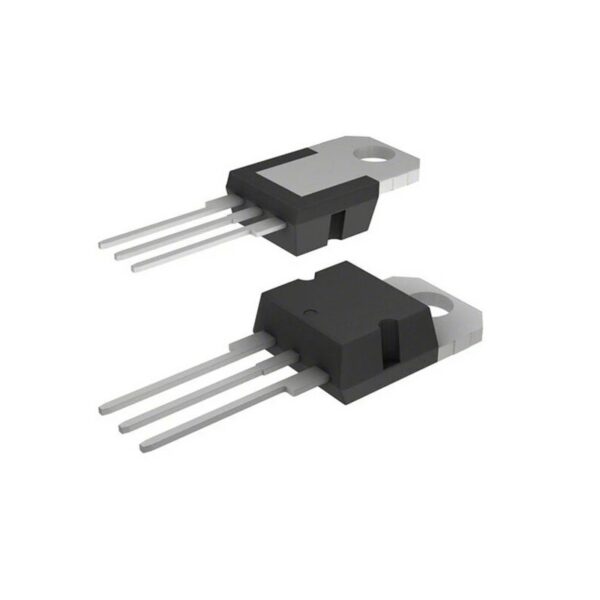

7810 10V Voltage Regulator TO-220
السعر الأصلي هو: 0,750 د.ا.0,400 د.االسعر الحالي هو: 0,400 د.ا.
L7810 – 10 V Voltage Stabilizer in the TO-220 capsule useful to achieve a stabilized voltage at 10 V.
- الوصف
الوصف
Specifications
- Output voltage: 10 V
- Maximum output current: 1 A
- Minimum input voltage: 12 V
- Maximum peak current: 2.2 A
- Leakage current: 5 mA
- Output resistance: 15 m Ohm
The product is a linear voltage stabilizer with a 10 V output voltage. This integrated circuit is non-LDO and excess voltage is eliminated by heat dissipation, so you need a large radiator.
Taking into account that the product dissipates a lot of heat, it is recommended to use it in applications where you do not have high current consumption.
