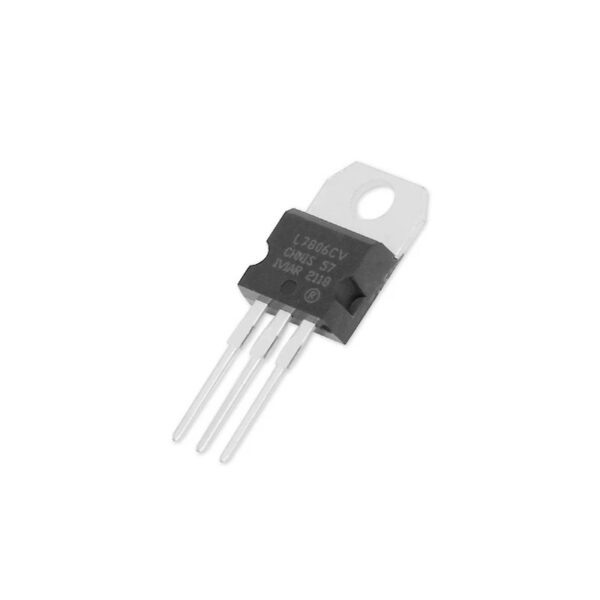

7806 6V Voltage Regulator TO-220

الوصف

Specifications

• Output voltage: 6 V
• Maximum output current: 1 A
• Minimum input voltage: 8 V
• Maximum peak current: 2.2 A
• Leakage current: 5 mA
• Output resistance: 15 m Ohm

The product is a linear voltage stabilizer with a 6V output voltage. This integrated circuit is non-LDO and excess voltage is eliminated by heat dissipation, so you need a large radiator.

Taking into account that the product dissipates a lot of heat, it is recommended to use it in applications where you do not have high current consumption.
