WAGO KV424 Connector

الوصف

Description

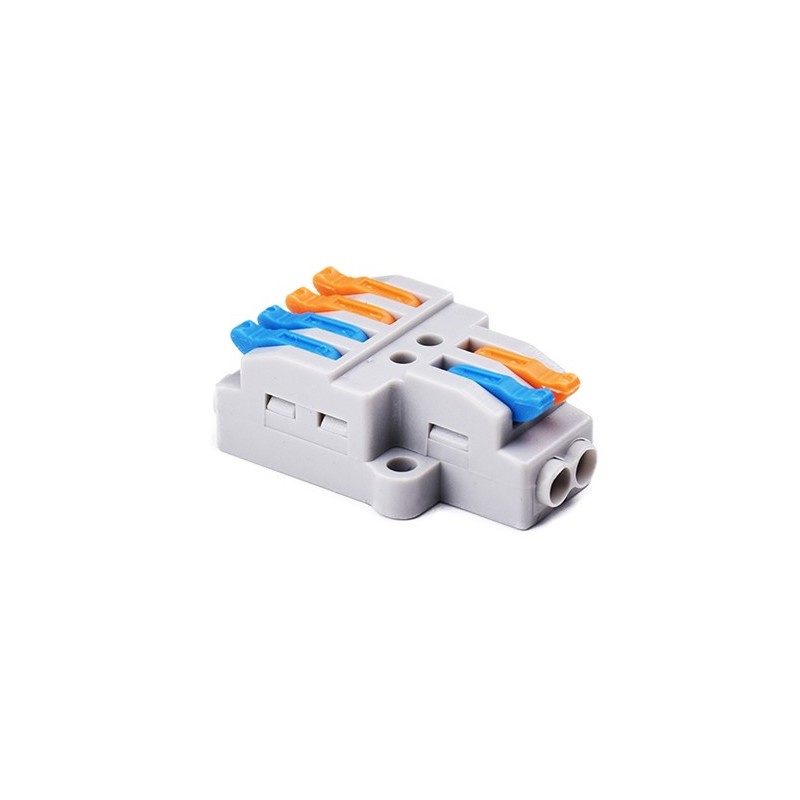

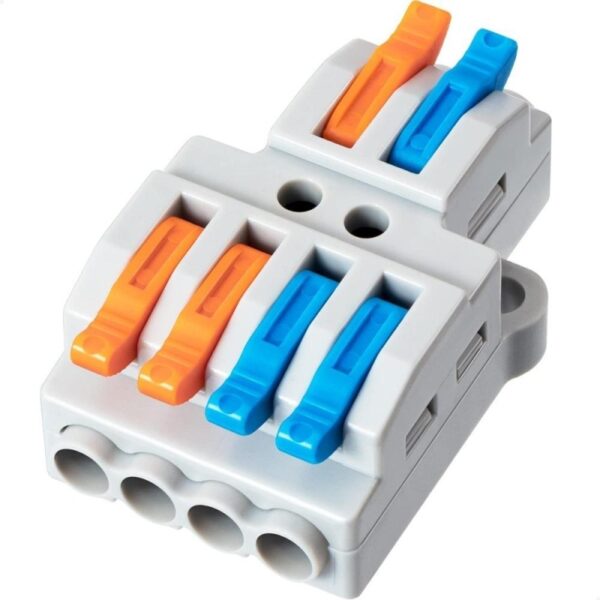

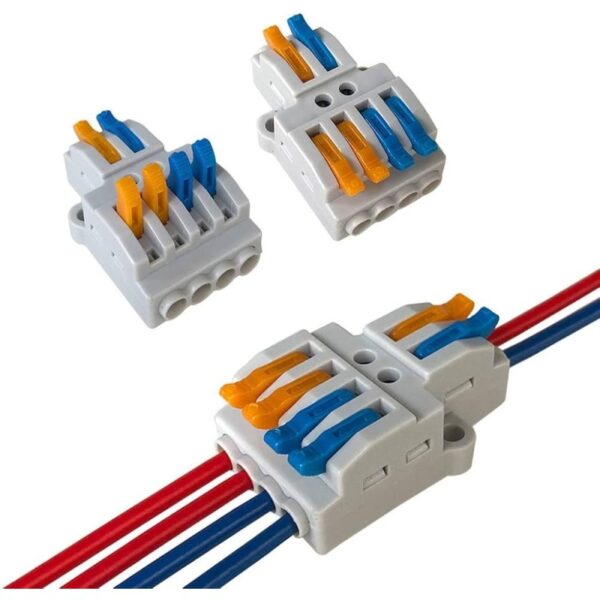

This is a PCT-SPL-62 0.08 – 2.5mm 6:2 Pole Wire Connector Terminal Block with Spring Lock Lever for Cable Connection. PCT Spring Lever Connector contains a compact locking wire connector by a spring lever, which is used for single-strand hardwire with 0.08mm to 2.5mm2 area or soft wire with 0.08mm to 4.0mm2 area (or AWG28 to AWG12). This connector can tolerate the rated voltage up to 400V with an electric current peak of 32A, result in a maximum of 7KW Power.

Note: Product image may vary in terms of color.

Features

1. High-grade Insulative Nylon Material
2. Strong Spring Locking Lever
3. Nickel Plated Metal Point Inside
4. Good Temperature Resistance
5. Compact Splicing Connector
6. 4:2 – Conductor Terminal Block
7. With Operating Levers
8. Max. Continuous Service Temperature 85oC
