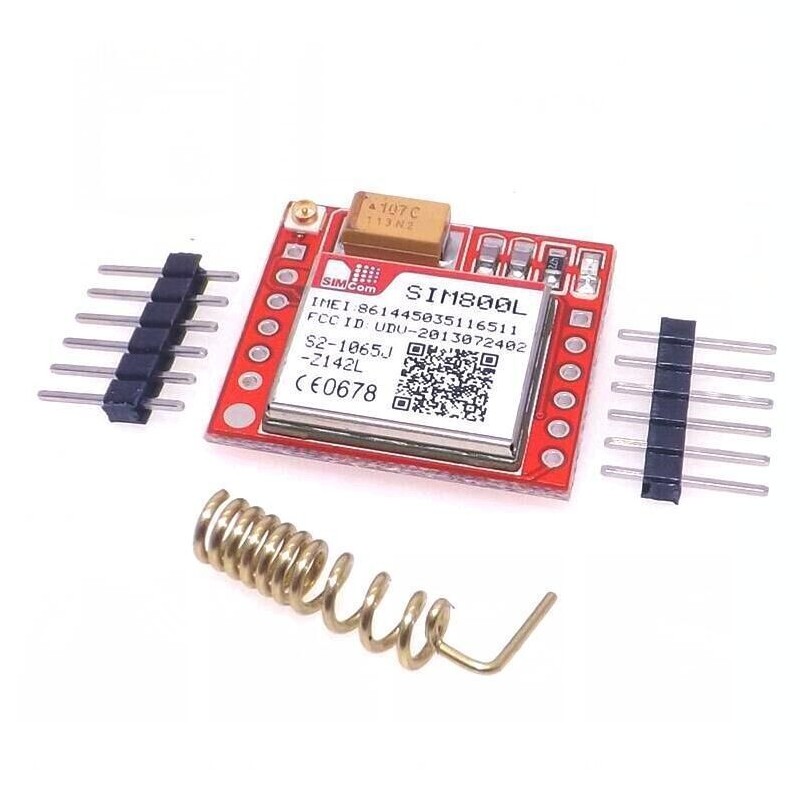

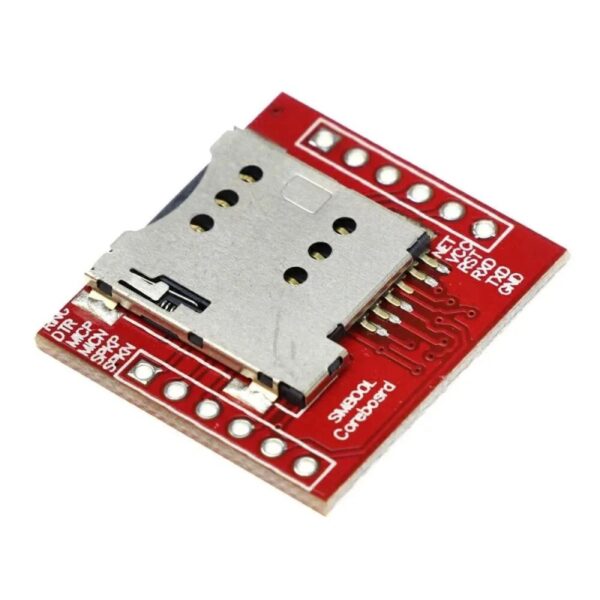

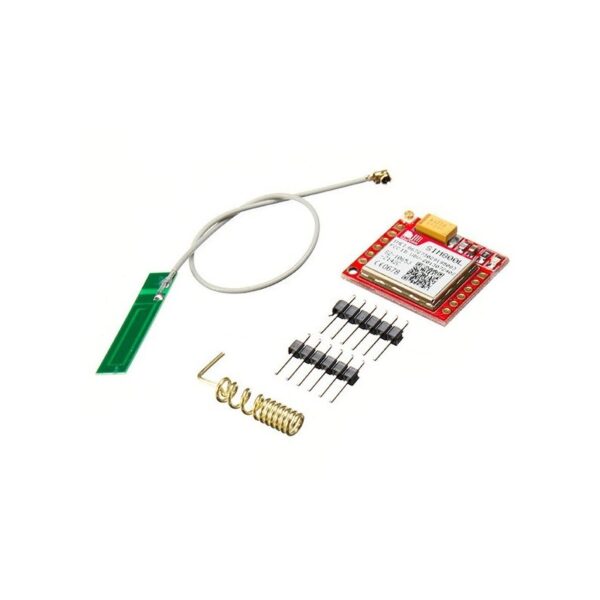

SIM800L GSM Module + PCB Antenna

الوصف

Overview

SIM800L module is a versatile small GSM module that supports the connection of voice, data, and SMS.

Specifications

• Quad-Band GSM 850/900/1800 / 1900MHz
• GPRS multi-slot class 12/10
• GPRS mobile station class B
• GSM 2/2 +FM frequency between 76 MHz and 109 kHz adjustable by step 50AT command set support (3GPP TS 27.007, 27.005 and augmented by SIMCOM AT)
  • Class 4 (2W at 850 / 900MHz)
  • Class 1 (1 W at 1800 / 1900MHz)
• Serial interface
• Supply Voltage: 3.4 – 4.4 V
• It works between -40 and +85oC
• GPRS class 12, maximum of 85.6 kbps
• PBCCH support
• Supports coding schemes CS 1, 2, 3, 4
• PPP stack
• CSD up to 14.4 kbps
• Supports USSD
• Supports SMS
• Supports text mode and PDU mode
• 0710 MUX protocol support
• Integrated support for TCP / UDP
• Supports FTP / HTTP
• MMS
• E-mail
• DTMF detection
• TricodecAMRHalf Rate (HR)
  • Half Rate (HR)
  • Full Rate (FR)
  • Enhanced Full Rate (EFR)
• Full Rate (FR)
• Supports echo cancellation algorithms
• SIM card interface 3 V / 1.8 V
