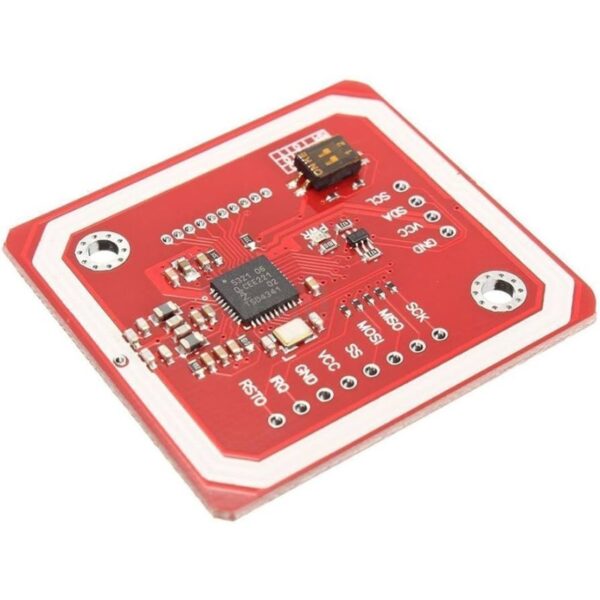

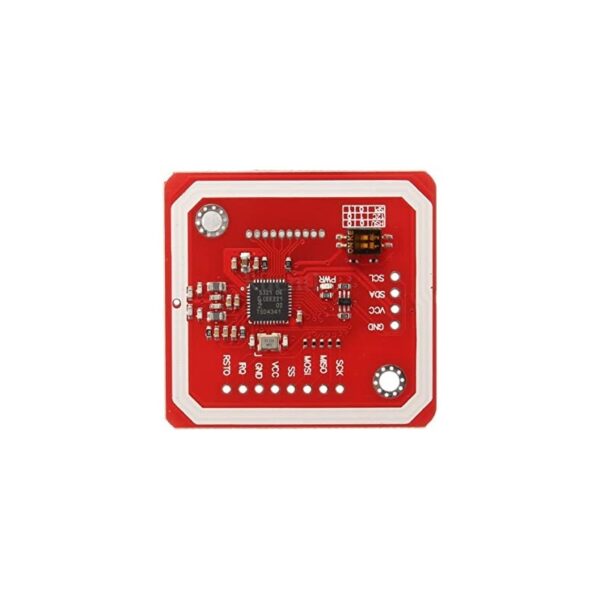

RFID PN532 Module
السعر الأصلي هو: 12,000 د.ا.9,000 د.االسعر الحالي هو: 9,000 د.ا.

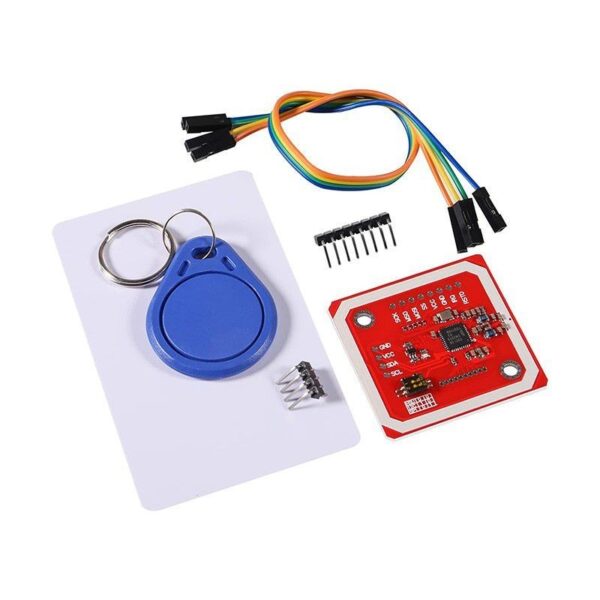

This kit includes all the components needed to add RFID functionality to your project. You can read or program RFID cards.
- الوصف
الوصف
Description and Specifications
RFID technology is based on the transmission of information over short distances (maximum 2 inches, usually). With this PN532-based kit you can program or read RFID cards. It has I2C, UART and SPI interfaces.
- Reading / writing modes
- Frequency: 13.56 MHz
- Supported cards:
- Mifare 1k, 4k, Ultralight, and DesFire
- ISO / IEC 14443-4 cards: CD97BX, CD light, Desfire, P5CN072 (SMX)
- Jewel Cards (IRT5001)
- FeliCa cards (RCS_860 or RCS_854)
- Arduino compatible
- PCB antenna with communication distance 4-6 cm
- Supports 1443-A card or virtual card
- Supports communication with NFC devices (smartphone, for example)
- Interfaces I2C, UART, SPI selectable via switches 00 = UART, 10 = I2C, 01 = SPI
