ESP32-C3 Super mini
7,000 د.ا

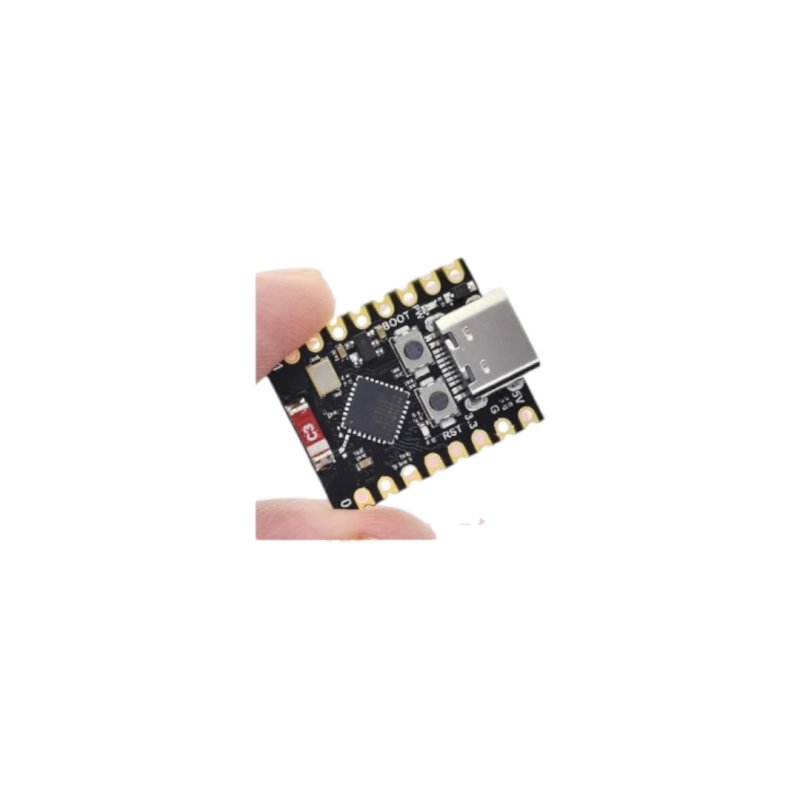

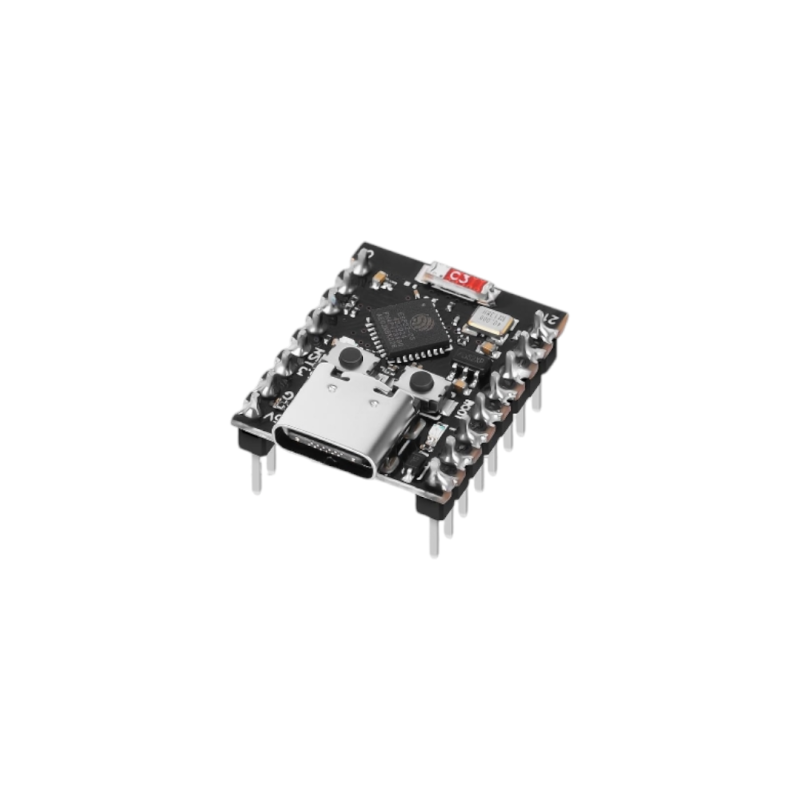

It is an ESP32-C3 Super Mini development board. This board is a compact, high-performance solution, ideal for Internet of Things (IoT) projects and wearable devices due to its small size and low power consumption.
Features and Specifications Summary
- Processor: It is based on the Espressif ESP32-C3FN4 chip, which features a single-core RISC-V CPU with a clock speed of up to 160 MHz.
- Wireless Connectivity: It supports both Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE) technologies.
- Memory: Includes 400 KB of SRAM and 4 MB of integrated flash memory.
- Ports and Interfaces:
- Integrated USB Type-C port for power, programming, and serial communication.
- 11 digital GPIO pins that can be used for PWM.
- 4 analog pins (ADC).
- Multiple serial interfaces including UART, I2C, and SPI.
- Design: Its very small size (approx. 22.5 x 18 mm) makes it easy to integrate into projects with limited space.
- Power Consumption: It features very low power consumption in deep-sleep mode (around 43 µA), making it suitable for battery-powered applications.
- الوصف
الوصف
It is an ESP32-C3 Super Mini development board. This board is a compact, high-performance solution, ideal for Internet of Things (IoT) projects and wearable devices due to its small size and low power consumption.
Features and Specifications Summary
- Processor: It is based on the Espressif ESP32-C3FN4 chip, which features a single-core RISC-V CPU with a clock speed of up to 160 MHz.
- Wireless Connectivity: It supports both Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE) technologies.
- Memory: Includes 400 KB of SRAM and 4 MB of integrated flash memory.
- Ports and Interfaces:
- Integrated USB Type-C port for power, programming, and serial communication.
- 11 digital GPIO pins that can be used for PWM.
- 4 analog pins (ADC).
- Multiple serial interfaces including UART, I2C, and SPI.
- Design: Its very small size (approx. 22.5 x 18 mm) makes it easy to integrate into projects with limited space.
- Power Consumption: It features very low power consumption in deep-sleep mode (around 43 µA), making it suitable for battery-powered applications.
Related Products
2000W Dimmer Module
4,750 د.ا
This module can control a maximum power of 2000 W. This is used to control...
MQ-3 Gas Sensor Module
السعر الأصلي هو: 4,000 د.ا.2,250 د.االسعر الحالي هو: 2,250 د.ا.
MQ-3 is a highly sensitive gas sensor to alcohol concentrations in the atmosphere. It has...
MQ-4 Gas Sensor Module
السعر الأصلي هو: 4,000 د.ا.2,250 د.االسعر الحالي هو: 2,250 د.ا.
MQ-4 is a highly sensitive gas sensor to variety of natural gases such as liquefied...
PC817 4-Channel Optocoupler Module
السعر الأصلي هو: 5,000 د.ا.3,000 د.االسعر الحالي هو: 3,000 د.ا.

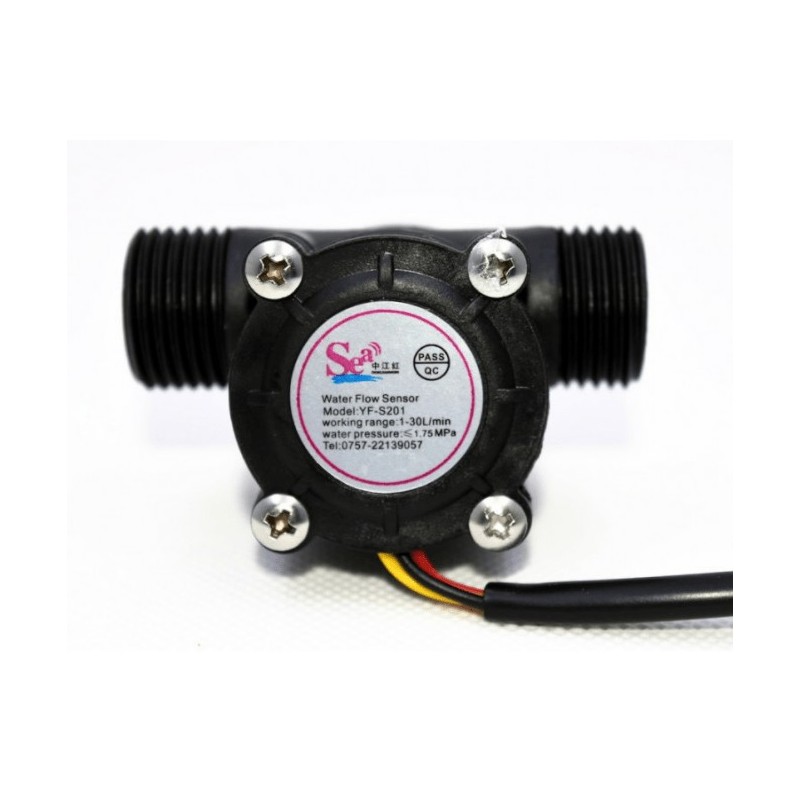

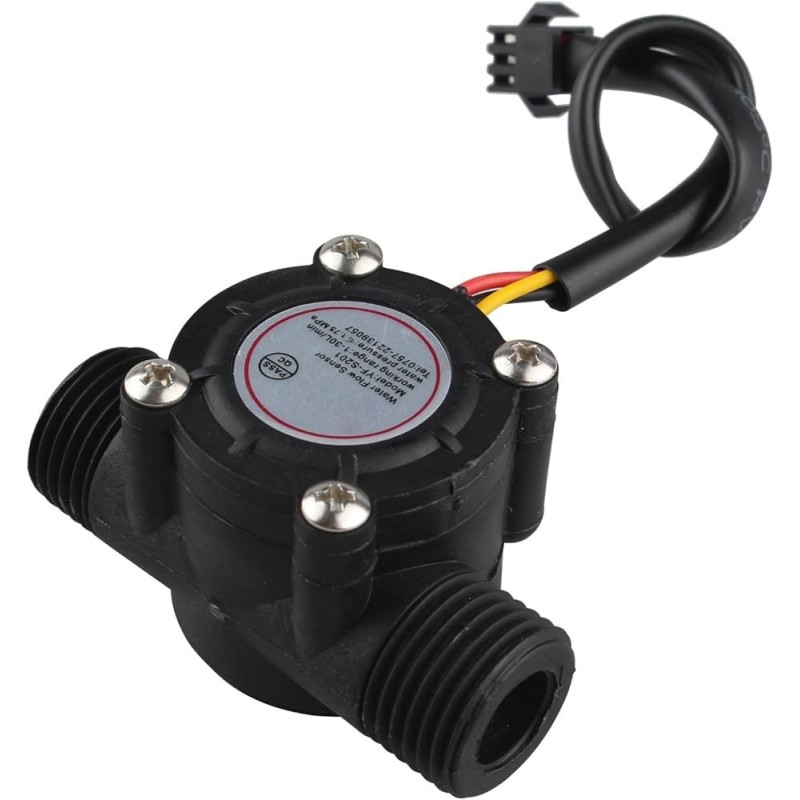

YF-S201 3/4" Water Flow Sensor
