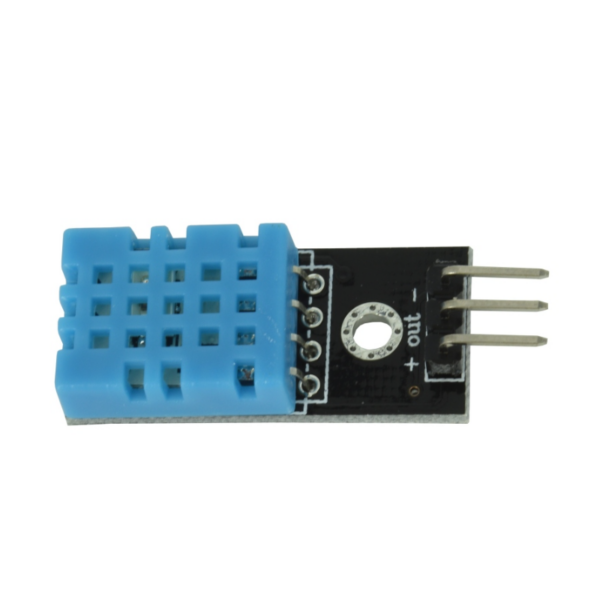

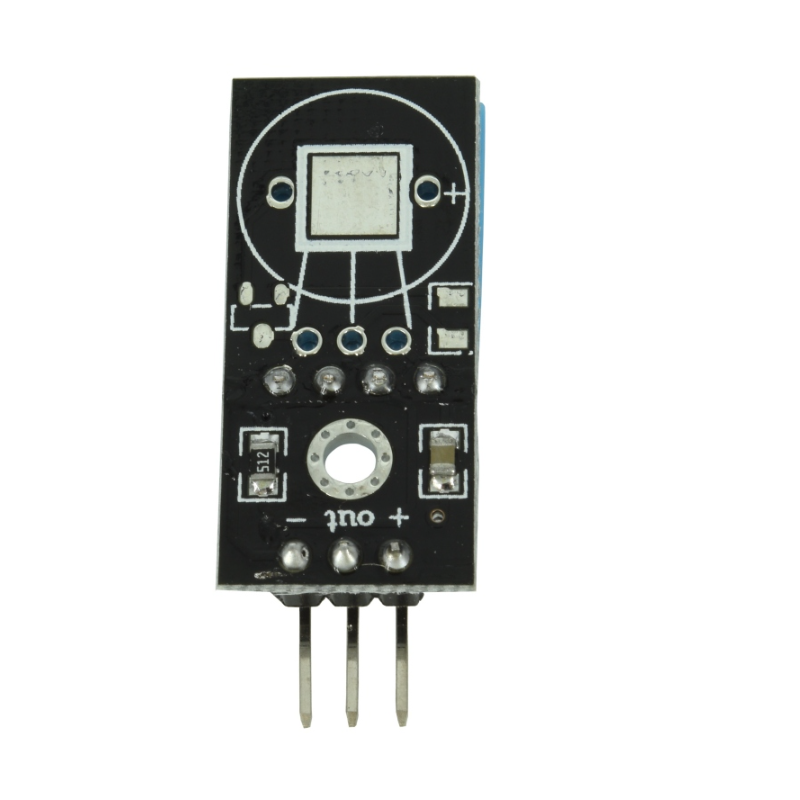

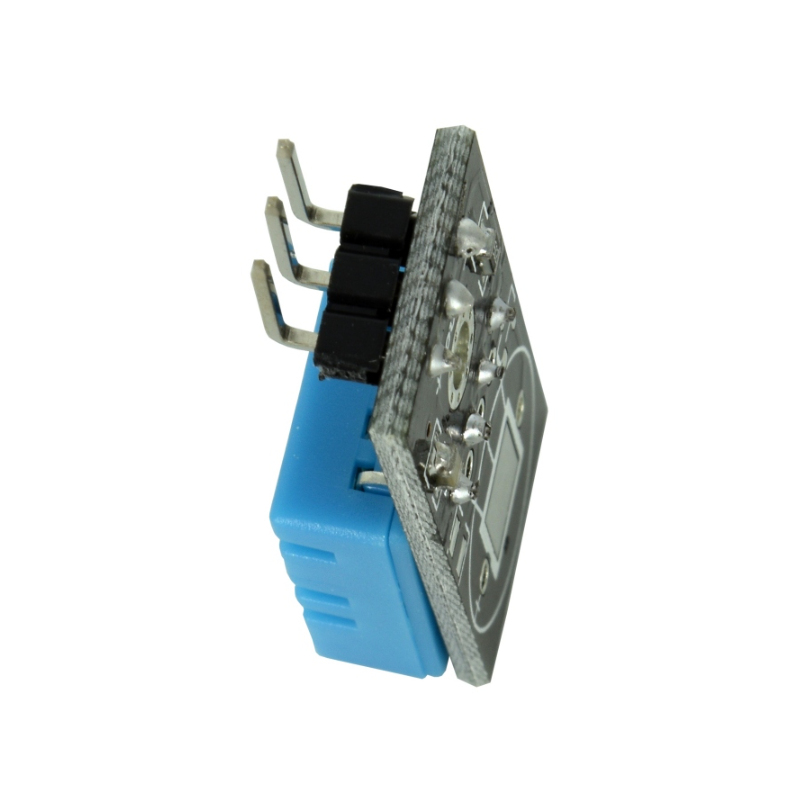

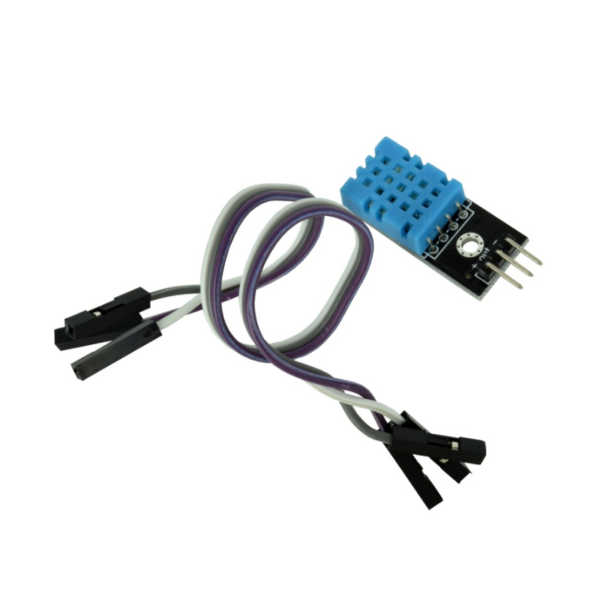

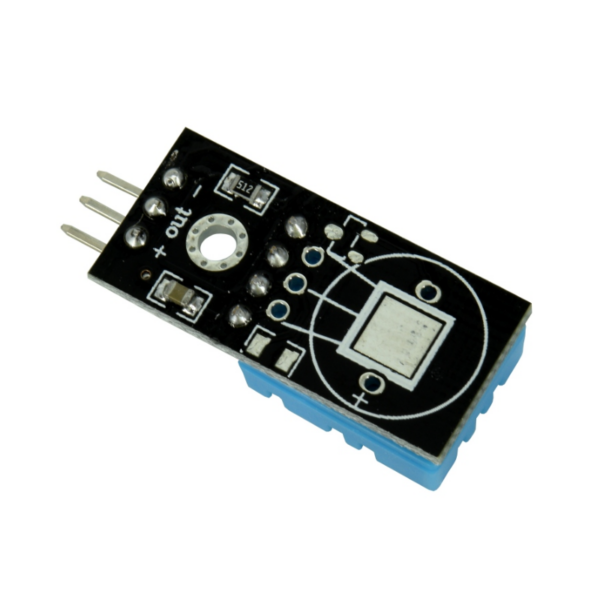

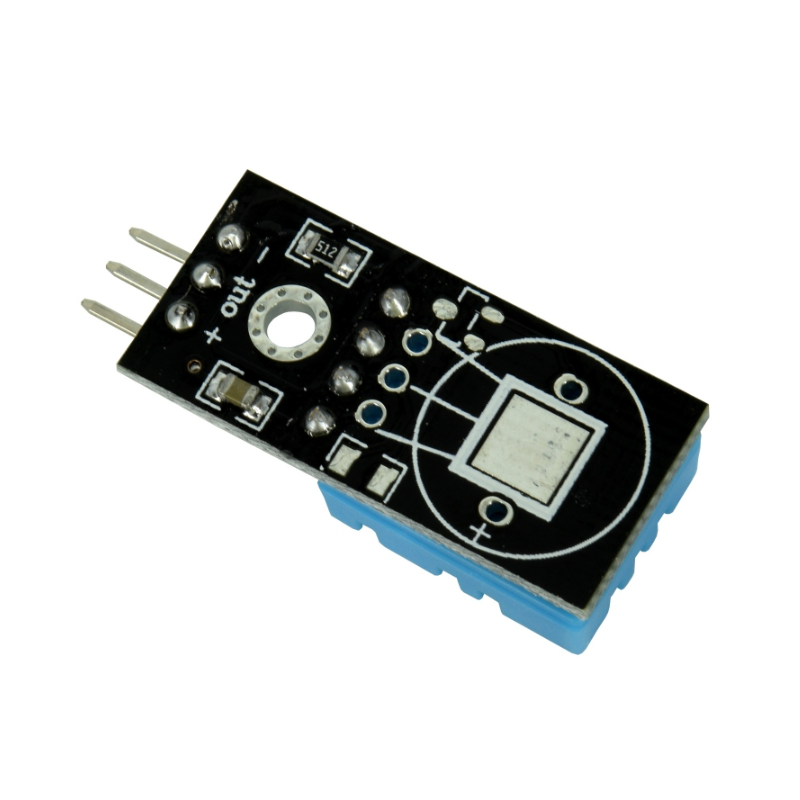

DHT11 Temperature and Humidity Module with Wires

الوصف

Overview

This module is based on DHT11, a high-performance temperature and humidity sensor, ensuring high reliability and excellent stability.

The temperature is measured using a negative temperature coefficient thermistor (NTC), and the relative humidity is measured using a capacitive sensor. Those sensing elements are pre-calibrated and the output is provided as a digital signal.

The DHT11 sensor is compatible with most of the popular microcontroller development boards, like Arduino.

Specifications

• Humidity sensing range: 20 – 90% RH
• Humidity measurement accuracy: ±5% RH
• Temperature measurement range: 0 – 60oC
• Temperature measurement accuracy: ±2oC
• Supply voltage: 3.3 to 5 V

Note: This module does not work at temperatures below 0oC.
