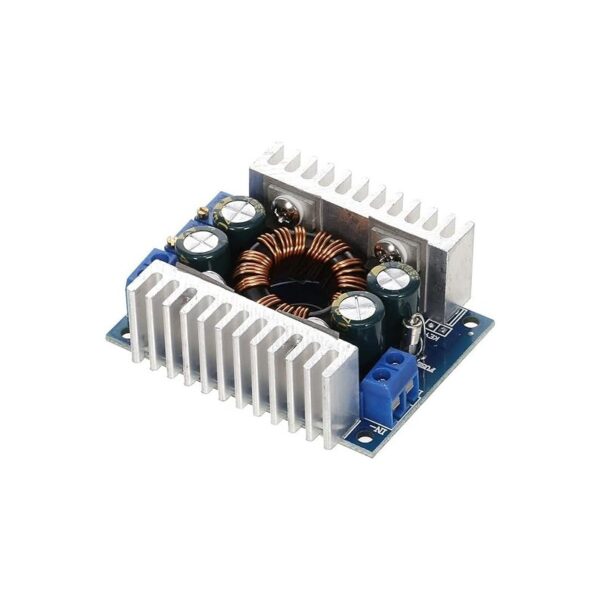

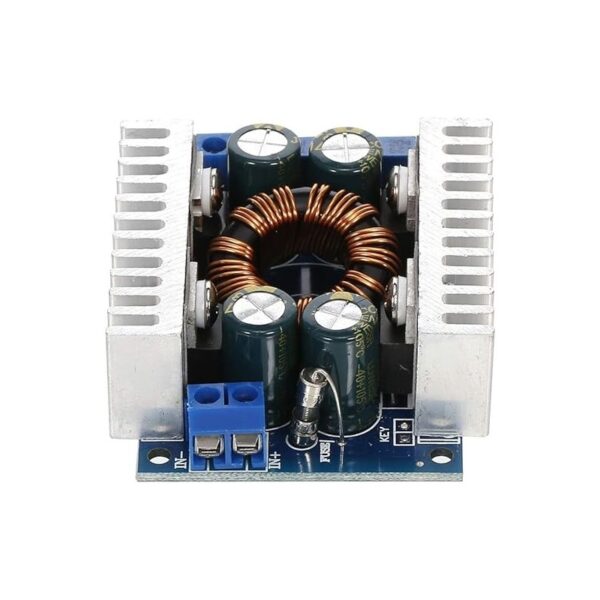

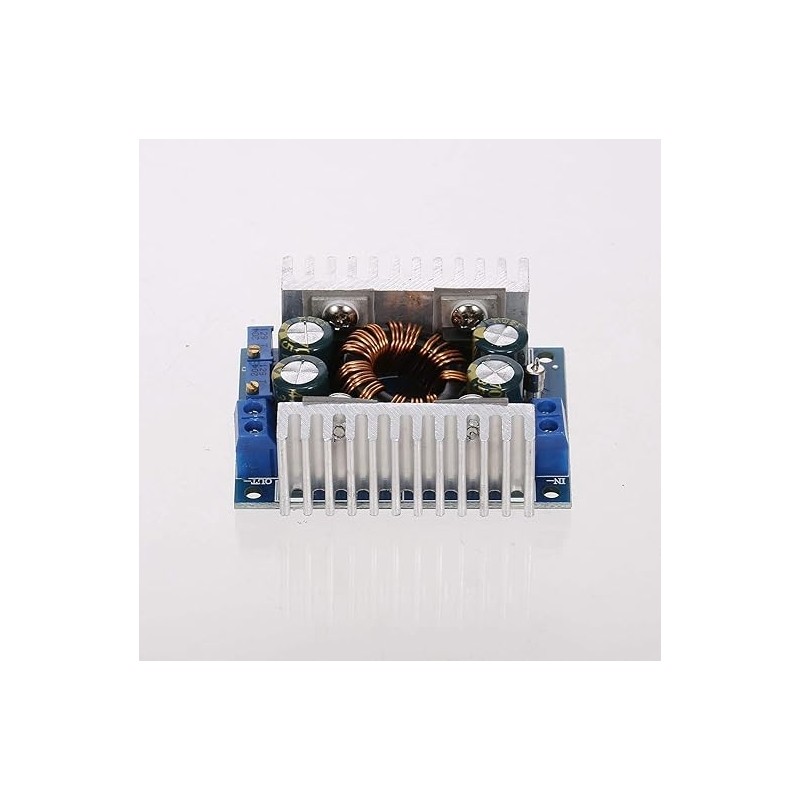

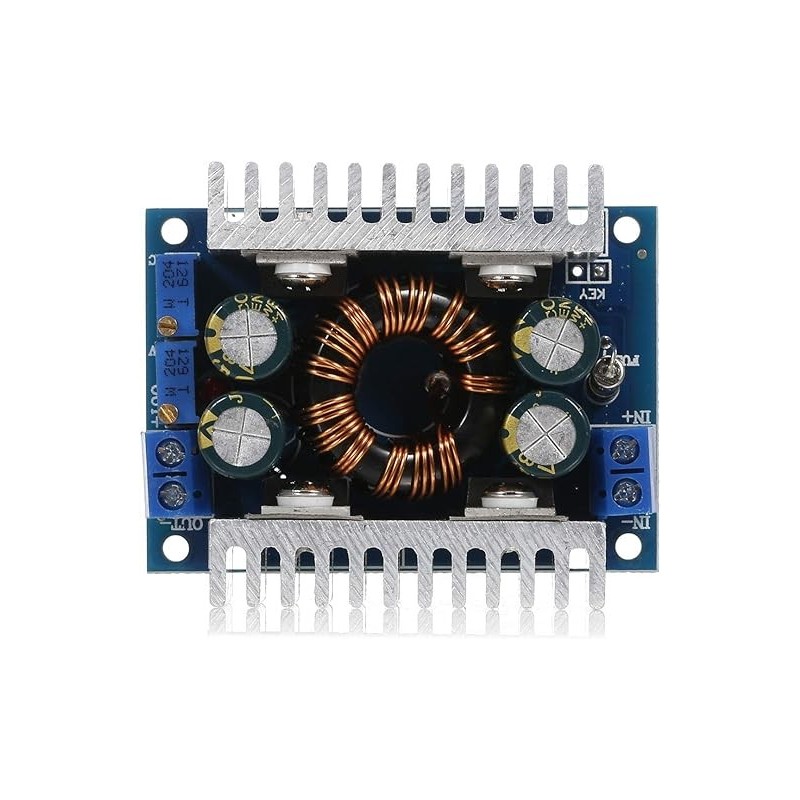

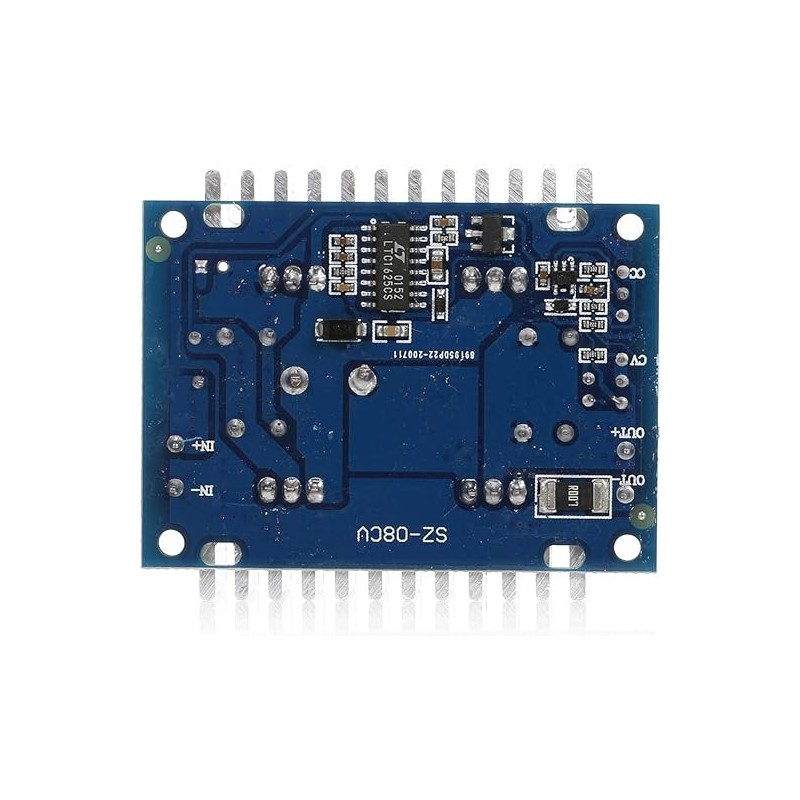

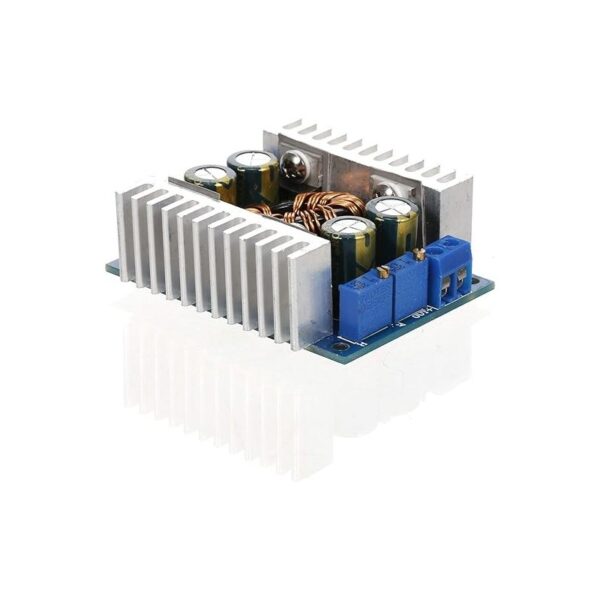

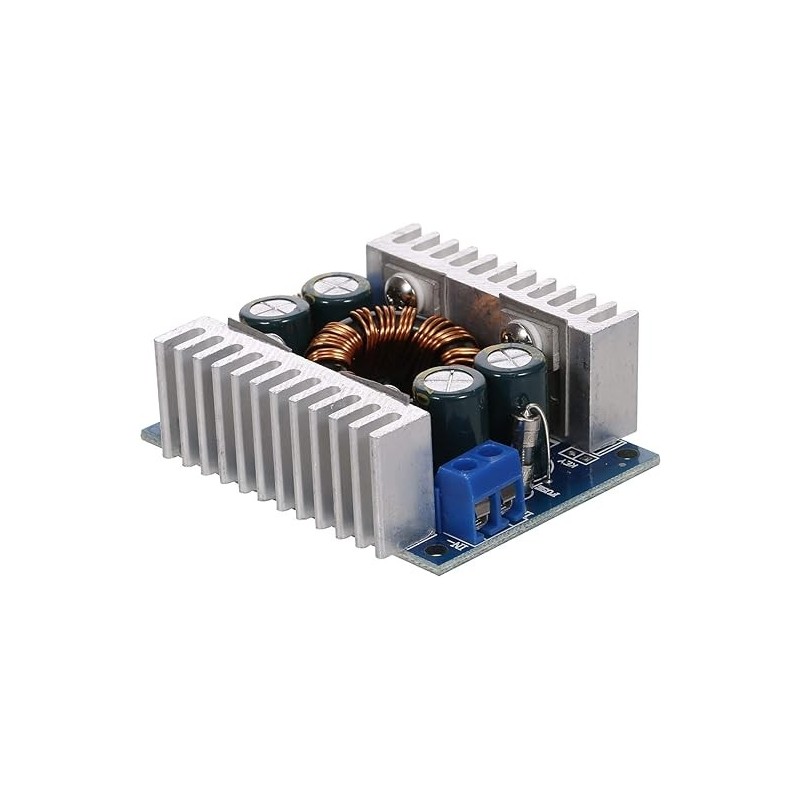

DC-DC Step Down 10A 5 -30V
السعر الأصلي هو: 13,000 د.ا.9,000 د.االسعر الحالي هو: 9,000 د.ا.
DC-DC Step Down 10A 5 -30V
- الوصف
الوصف
Specifications:
Input voltage: DC5-30V
Input current: 8A (max), peak 10A (within 6A for long time operation)
Static working current: 4mA
Output voltage: 1.25-30V, continuously adjustable
Output current: 10A (max)
Output constant current range: 0.2-10A
Working temperature: – 40 ~ + 85 degrees
Working frequency: 150kHz
Conversion efficiency: typical 91% (12V to 12V5A) 93% higher
Over current protection/Short circuit protection/Overtemperature protection
Connection mode: terminal output, (IN is input, OUT is output)
Module size: 60mm * 53mm * 22mm (L / w / h)
Package size: 11*9*4cm
Package weight: 80g
