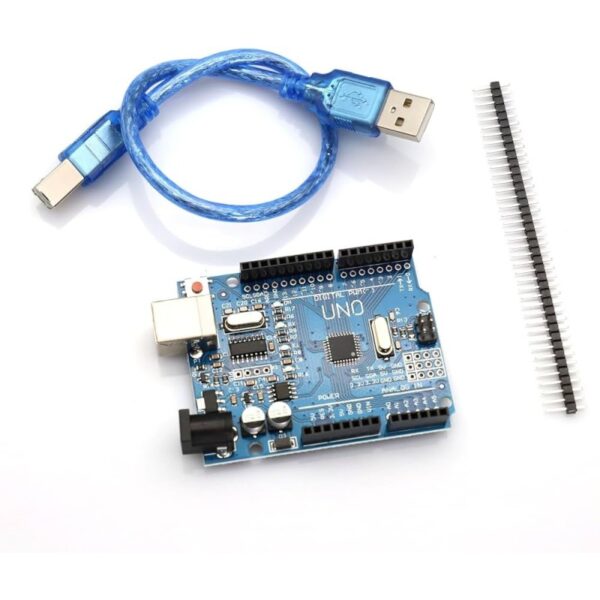

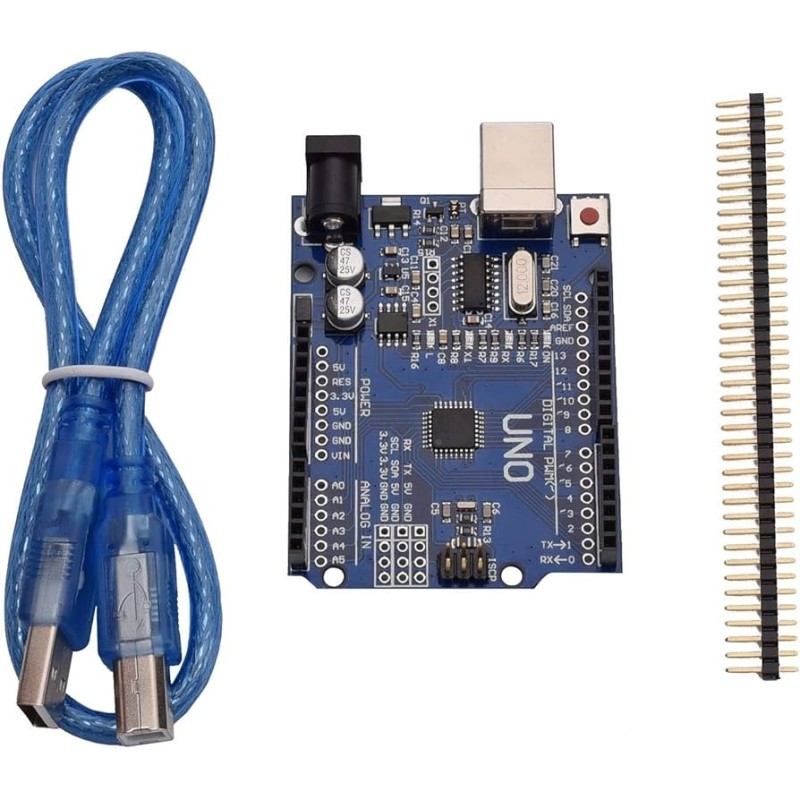

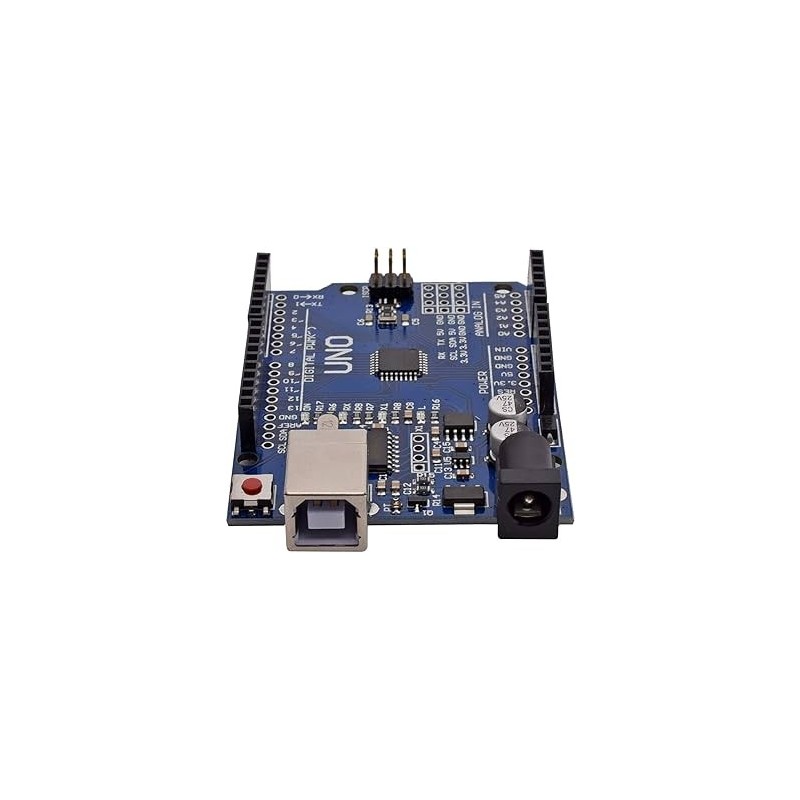

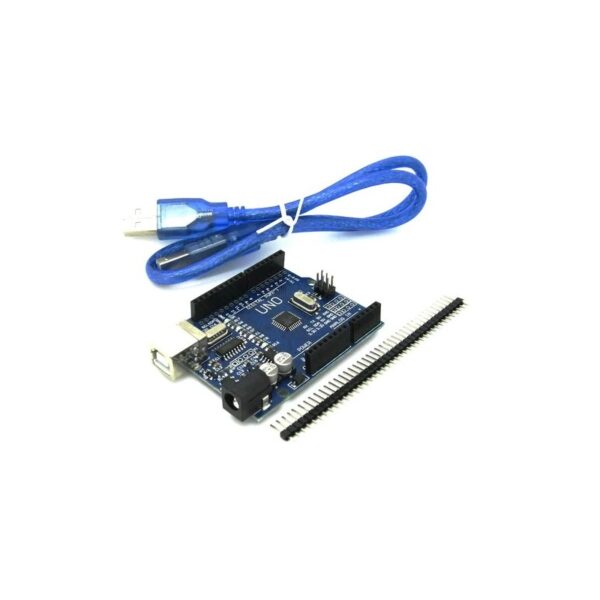

Arduino UNO R3 ATmega328p-CH340 + Cable

الوصف

Description

This board can be used in wide range of electronics projects. With the use of sensors and ethernet or Bluetooth shields, you can create an innovative fixture for your home automation.

The difference from the original Arduino UNO is this board uses an ATMEGA328P microcontroller and the integrated circuit is programmed via CH340 chip.

Do not forget to install the driver (attached at the bottom) for chip CH340 before use.

To use the board for other sample applications: Download Arduino IDE.

Specifications

• Operating voltage: 5 V
• Power supply: 7 V to 12 V
• Pin I / O: 14
• PWM pin 6 (out of 14 I / O)
• ADC pin: 8
• Flash Memory: 32 KB (8 busy bootloader)
• Communication TWI, SPI, and UART
• Operating Frequency: 16 MHz
