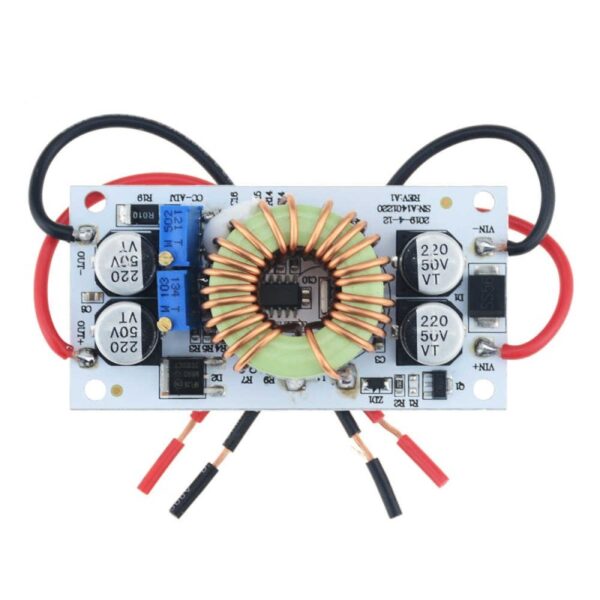

250 W Boost Step Up Converter

الوصف

Overview

This 250 W boost DC-DC converter can easily provide the necessary power output for your embedded systems and it is a convenient solution for most of your project that requires high power.

It can be used for boost chargers, universal power supply for embedded systems and more.

Specifications

• Mode step-up (boost)
• Input Voltage: 8.5 V to 48 V
• Output Voltage: 12 V to 50 V (adjustable)
• Output Current: 10 A (max) – is recommended to use a ventilator for more than 6 A
• Constant Current: 0.2 A to 8 A
• Efficiency: 96 %
• Frequency: 150 kHz
• Temperature: – 40 oC to + 85 oC
• Response Speed: 5% 200 mS
• Reverse polarity protection
• Dimensions: 70 x 46 x 13 mm
